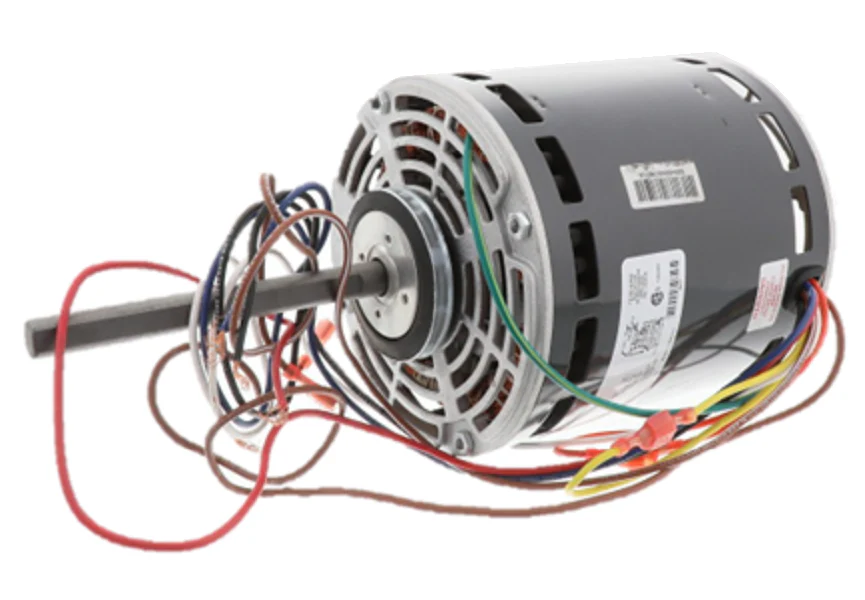

Nidec-US Motors 8907 Blower Motor
The Nidec-US Motors 8907 Blower Motor is a professional-grade 1 HP HVAC fan motor designed for high-static pressure applications in residential and light commercial air handlers and furnaces. Operating on 208-230V single-phase power, this PSC (Permanent Split Capacitor) motor features a three-speed design, allowing technicians to fine-tune airflow across 1075, 925, or 825 nominal RPM ranges. Built with a 48Y NEMA frame and a 5.6-inch diameter, it incorporates an Open Dripproof (ODP) enclosure and Open Air Over (OAO) cooling to maintain lower internal temperatures during continuous duty. The reversible rotation and hub ring mounting with stud extensions ensure maximum compatibility when replacing OEM motors. This roll-steel 6-pole motor requires a 15 MFD 370V capacitor and includes 24-inch leads for straightforward integration into existing control boards.
Key Benefits for Contractors
- Multi-Speed Versatility: The 3-speed configuration provides flexibility for various BTU ratings and ductwork layouts.
- Broad Compatibility: A reversible rotation feature simplifies truck stock by replacing both CW and CCW lead-end motors.
- Advanced Protection: Integrated automatic reset thermal overload protection prevents winding failure during restricted airflow conditions.
- Standardized Fit: The 48Y frame with a 1/2" x 5" shaft matches common direct-drive blower wheel specs.
- Reliability: Heavy-duty ball bearings and Class B insulation support continuous duty cycles in 40°C ambient environments.
Common Technical Questions
What capacitor is required for the Nidec 8907?
This motor is engineered to operate with a 15 MFD / 370 VAC run capacitor. Using an incorrect rating can lead to overheating or torque loss.
Can this motor be mounted in any orientation?
Yes, the Nidec 8907 supports various positions, including shaft-up, shaft-down, or horizontal, provided the open air over ventilation is not obstructed.
How do I change the rotation on this motor?
Rotation is easily changed by reversing the internal plug connectors or reversing the relative orientation of the capacitor leads as per the wiring diagram on the motor shell.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
