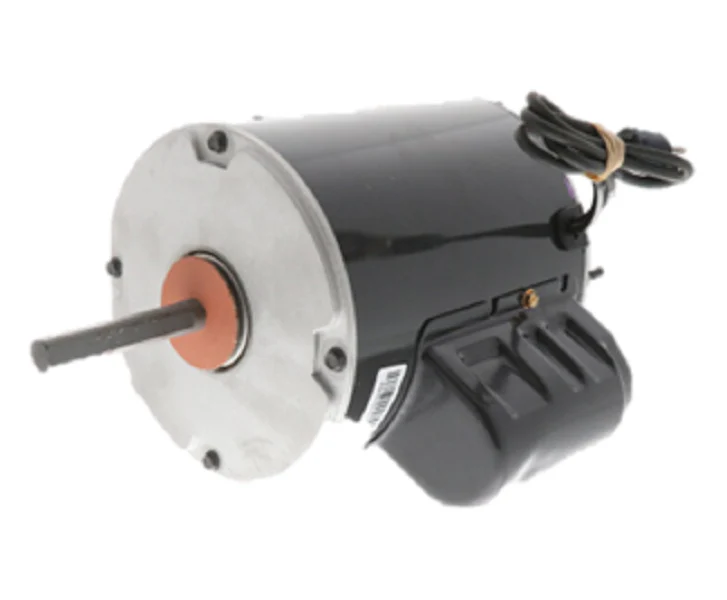

Nidec-US Motors 8869 Motor
The Nidec-US Motors 8869 is a professional-grade condenser fan motor designed for demanding commercial HVACR applications. This 1/2 HP motor operates at a nominal 1075 RPM speed, delivering consistent airflow for heat dissipation in outdoor units. Engineered for 460V single-phase electrical systems, it features a Permanent Split Capacitor (PSC) design to optimize electrical efficiency and reduce operational heat. The US Motors 8869 is built with a 48-frame diameter and utilizes totally enclosed air over (TEAO) construction to protect internal windings from environmental contaminants and moisture. With its reversible rotation capability and high-dielectric insulation, this motor serves as a reliable direct drive motor replacement for various OEM units. Contractors often select the 8869 motor for its ball bearing system, which supports both horizontal and vertical shaft-down orientations, ensuring long-term mechanical stability in high-ambient conditions.
- High-Voltage Compatibility: Optimized for 460V 60Hz systems common in industrial and commercial rooftop units.
- Robust Environmental Protection: TEAO enclosure prevents Dust and rain ingress, extending the service life of the fan motor.
- Multi-Mount Versatility: Features standard NEMA 48-frame dimensions for seamless integration into existing mounting brackets.
- Thermal Overload Protection: Built-in automatic reset protects the windings from overheating during peak summer loads.
- Efficient PSC Design: Requires a run capacitor to maintain high starting torque and improved Power Factor.
Common Questions
What capacitor is required for the US Motors 8869?
This motor typically requires a 7.5 MFD / 370V or 440V run capacitor; always verify the rating on the specific motor nameplate before installation.
Can this motor be mounted shaft-up or shaft-down?
Yes, the ball-bearing system and weep holes are designed to accommodate multiple mounting positions, provided the drainage plugs are properly adjusted.
Is the rotation direction field-reversible?
Yes, the rotation can be changed by swapping the lead connections according to the wiring diagram on the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
