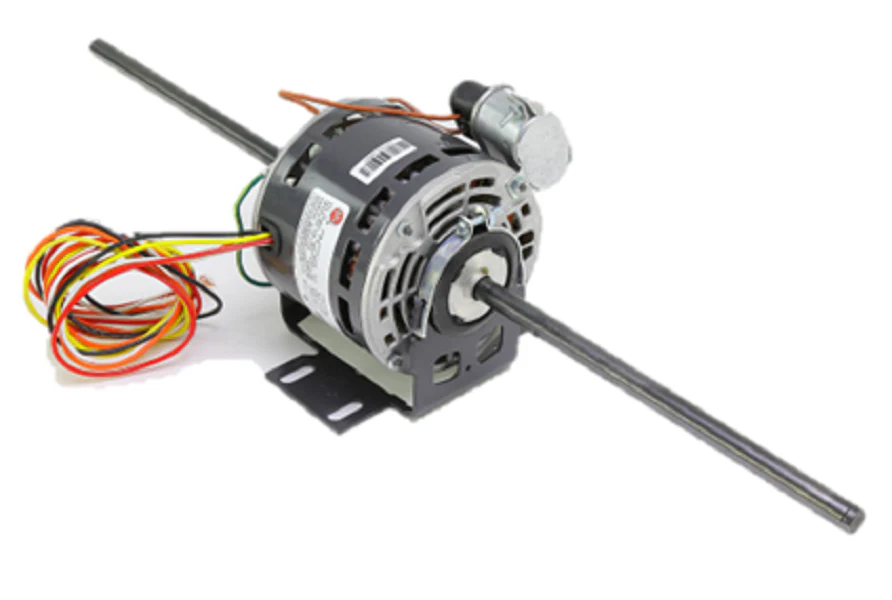

Nidec-US Motors 8525 Blower Motor
The Nidec-US Motors 8525 Blower Motor is a high-performance 1/6 HP direct drive motor engineered for reliability in package terminal air conditioners (PTAC) and heat pump units. Operating at 115V with a 1625 RPM rating, this single-phase PSC motor is specifically designed for continuous duty air over (OAO) applications where consistent thermal management is non-negotiable. The 48Y NEMA frame size and cradle mount configuration ensure a precise fit for residential and light commercial HVACR equipment requiring a robust dual shaft output.
Built with sleeve bearings featuring an all-angle thrust system, the Nidec 8525 provides versatile mounting options and quiet operation. The permanent split capacitor design facilitates high electrical efficiency, while the automatic reset thermal overload protector safeguards the windings during demanding cycles. With 4-speed versatility and an open air over enclosure, this 115Vac blower motor is a standard-issue replacement for contractors looking to restore factory-spec airflow and static pressure performance in critical furnace and blower assemblies.
Key Benefits- Dual shaft configuration permits simultaneous operation of multiple blowers, ideal for specialized PTAC and heat pump designs.
- 4-speed motor taps provide flexible airflow adjustment to meet specific HVAC system static pressure requirements.
- Automatic thermal protection prevents winding failure by self-tripping during overheating and resetting once cooled.
- All-angle sleeve bearings allow for varied mounting orientations without compromising internal lubrication or shaft stability.
- High-speed 1625 RPM performance ensures optimal air exchange across the evaporator or condenser coils.
What capacitor is required for the US Motors 8525?
This motor typically requires a 5 MFD / 370 VAC run capacitor to maintain proper phase shift and torque efficiency.
Can this motor be used in totally enclosed applications?
No, this is an Open Air Over (OAO) motor; it relies on the moving airstream for cooling and must be positioned within the airflow path.
Is the shaft rotation reversible on the 8525 model?
The motor is designed with specific shaft rotations (typically CCWLE), but many Nidec 48-frame models offer lead-reversal or are dedicated to specific OEM rotation patterns.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
