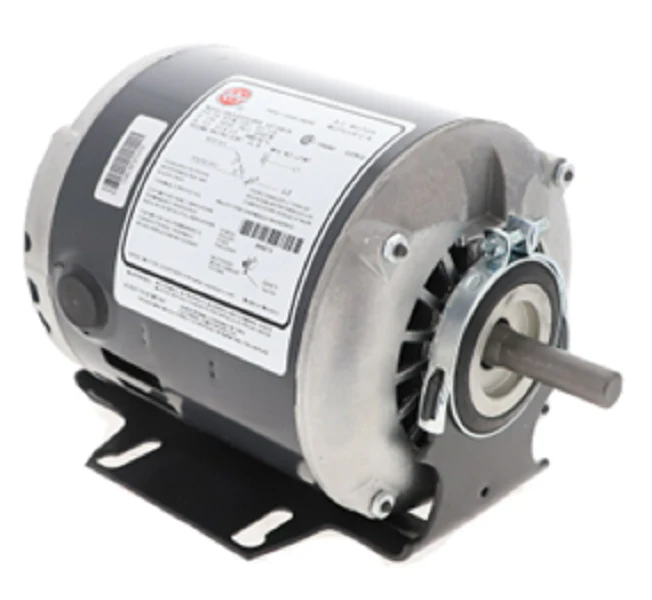

Nidec-US Motors 840CV Motor
The Nidec US Motors 840CV is a rugged, open dripproof (ODP) 1/4 HP HVAC motor designed for high-duty cycle applications. Operating at a synchronous speed of 1725 RPM on a 115V single-phase power supply, this motor utilizes a NEMA 48 frame configuration with a resilient base for effective vibration dampening. As a split phase motor, it delivers reliable starting torque specifically engineered for belt drive blowers and air handling units. The permanently lubricated ball bearings ensure minimal maintenance requirements in demanding mechanical rooms, while the 1.35 service factor provides the thermal headroom necessary for continuous operation. This replacement blower motor features Class B insulation and is thermally protected to prevent winding failure during overcurrent events. Whether retrofitting an older furnace or servicing a commercial ventilation system, the US Motors 840CV offers the industrial-grade build quality required for precise airflow management and long-term mechanical reliability.
Key Benefits
- Resilient Base Mounting: Minimizes noise transmission and structural vibration throughout the ductwork.
- High Service Factor: Rated at 1.35, allowing the motor to handle intermittent loading beyond its 0.25 HP rating.
- Maintenance-Free Bearings: Double-shielded ball bearings eliminate the need for periodic re-greasing in hard-to-reach blower housings.
- Optimized Cooling: ODP enclosure design maximizes internal airflow to maintain low winding temperatures during peak demand.
- Standardized NEMA 48 Frame: Ensures straightforward drop-in compatibility with most OEM belt-drive fan assemblies.
Common Questions
What are the rotation and wiring requirements for the 840CV?
This motor is typically set for selective rotation (CCW/CW) by swapping internal leads. Always verify the rotation matches your existing blower wheel to prevent reverse airflow or motor overheating.
Can this motor replace a PSC motor?
While the 840CV is a split-phase motor, it can replace a PSC motor of the same horsepower and frame size, provided the mounting and shaft dimensions align. Note that split-phase motors do not require a run capacitor.
Is the 840CV suitable for direct drive fans?
No, this unit is specifically engineered for belt-drive applications. Direct-drive applications usually require multi-speed taps and different mounting configurations, such as belly bands or extended thru-bolts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $156.81
-65%$156.81
$54.88Nidec-US Motors 840CV Motor
The Nidec US Motors 840CV is a rugged, open dripproof (ODP) 1/4 HP HVAC motor designed for high-duty cycle applications. Operating at a synchronous speed of 1725 RPM on a 115V single-phase power supply, this motor utilizes a NEMA 48 frame configuration with a resilient base for effective vibration dampening. As a split phase motor, it delivers reliable starting torque specifically engineered for belt drive blowers and air handling units. The permanently lubricated ball bearings ensure minimal maintenance requirements in demanding mechanical rooms, while the 1.35 service factor provides the thermal headroom necessary for continuous operation. This replacement blower motor features Class B insulation and is thermally protected to prevent winding failure during overcurrent events. Whether retrofitting an older furnace or servicing a commercial ventilation system, the US Motors 840CV offers the industrial-grade build quality required for precise airflow management and long-term mechanical reliability.
Key Benefits
- Resilient Base Mounting: Minimizes noise transmission and structural vibration throughout the ductwork.
- High Service Factor: Rated at 1.35, allowing the motor to handle intermittent loading beyond its 0.25 HP rating.
- Maintenance-Free Bearings: Double-shielded ball bearings eliminate the need for periodic re-greasing in hard-to-reach blower housings.
- Optimized Cooling: ODP enclosure design maximizes internal airflow to maintain low winding temperatures during peak demand.
- Standardized NEMA 48 Frame: Ensures straightforward drop-in compatibility with most OEM belt-drive fan assemblies.
Common Questions
What are the rotation and wiring requirements for the 840CV?
This motor is typically set for selective rotation (CCW/CW) by swapping internal leads. Always verify the rotation matches your existing blower wheel to prevent reverse airflow or motor overheating.
Can this motor replace a PSC motor?
While the 840CV is a split-phase motor, it can replace a PSC motor of the same horsepower and frame size, provided the mounting and shaft dimensions align. Note that split-phase motors do not require a run capacitor.
Is the 840CV suitable for direct drive fans?
No, this unit is specifically engineered for belt-drive applications. Direct-drive applications usually require multi-speed taps and different mounting configurations, such as belly bands or extended thru-bolts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
