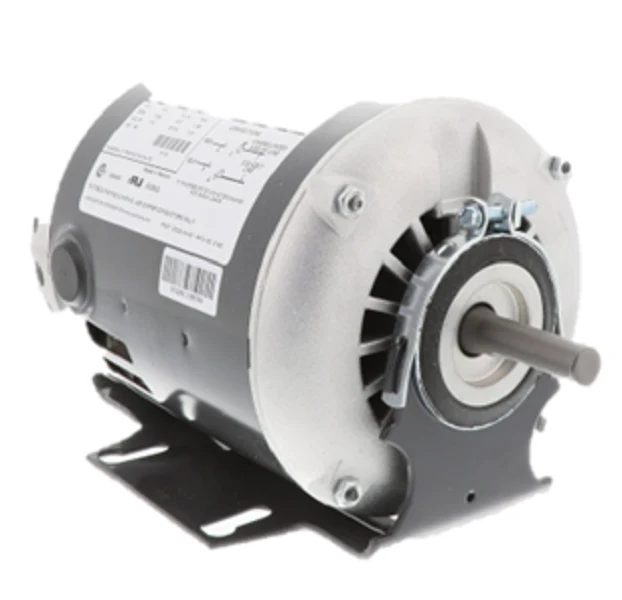

Nidec-US Motors 8100 Blower Motor
The Nidec-US Motors 8100 Blower Motor is a high-reliability 1/3 HP furnace motor designed for direct-drive applications in residential and light commercial HVAC systems. This 115V single-phase motor operates at a fixed 1725 RPM, delivering consistent airflow through its split-phase capacitor design. Built on a standard 48 NEMA frame size, it features a resilient mount to minimize vibration and harmonic noise across the ductwork. The open dripproof (ODP) enclosure ensures optimal cooling for the internal windings while the 6203 ball bearings provide durability under continuous duty cycles. With a 6.4 Amp rating, this direct drive blower motor serves as a drop-in replacement for various OEM blowers, ensuring the static pressure requirements of the system are met without compromising efficiency. For techs in the field, this unit offers a straightforward 1/3 HP HVAC motor replacement solution where reliable single-speed blower motor performance is required.
- Resilient Base Mounting: Effectively isolates motor vibration, preventing noise transfer to the furnace cabinet.
- Standard 48 Frame: Provides universal compatibility for most 1/3 HP direct-drive blower assemblies.
- High-Grade Ball Bearings: Features 6203 double-shielded bearings for reduced friction and extended service life in high-heat environments.
- Thermal Protection: Includes internal automatic reset thermal overload protection to prevent winding failure during stall conditions.
Common Questions
Is the Nidec 8100 suitable for belt-drive systems?
No, this is a direct drive motor specifically designed to have the blower wheel mounted directly on the shaft. For belt-drive applications, a motor with a rigid base and specific side-loading bearings is required.
Can I use this motor to replace a 1075 RPM blower?
No, motor speeds must match exactly. Replacing a 1075 RPM motor with this 1725 RPM unit will cause the blower wheel to pull too many Amps, likely tripping the breaker or damaging the motor and wheel.
What is the frame diameter of this unit?
The NEMA 48 frame typically has a 5.6-inch diameter, though the resilient cradle mount allows for standard mounting cradle dimensions used across the HVAC industry.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
