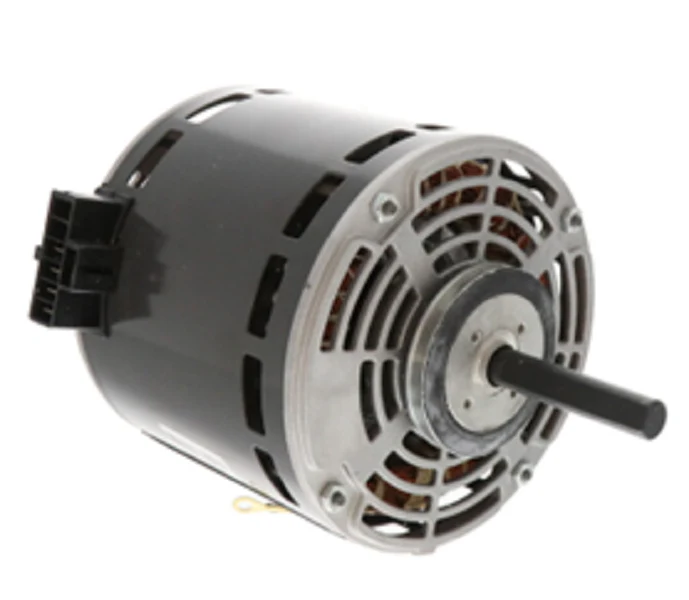

Nidec-US Motors 8066 Blower Motor
The Nidec-US Motors 8066 3/4 HP Blower Motor is a high-performance multi-speed shaded pole motor designed for direct-drive furnace and air handler applications. Operating at 208-230Vac with a rated speed of 1075 RPM, this 48-frame motor features a reversible rotation design to accommodate various blower wheel configurations. Built with Class B insulation and an open air-over (OAO) enclosure, it ensures efficient thermal management during continuous duty operation. Technicians often select the 8066 as a reliable HVAC replacement motor due to its 3-speed flexibility and 1/2-inch diameter by 4-inch length shaft, which fits standard mounting brackets. Its permanent split capacitor (PSC) design provides the high starting torque required for heavy-duty residential and light commercial fan coils. When performing a Nidec 8066 installation, ensure the capacitor is sized correctly to maintain specified amperage and prevent overheating.
Key Benefits
- Versatile Multi-Speed Performance: Features 3 distinct speed taps to fine-tune airflow for heating and cooling cycles.
- Universal Compatibility: Standard 48-frame diameter and reversible rotation simplify HVAC motor cross-referencing.
- Enhanced Durability: Equipped with auto-reset thermal overload protection to prevent winding failure during high-static conditions.
- Quiet Operation: Precision-balanced rotor minimizes vibration and mechanical noise within the ductwork.
- PSC Efficiency: High-efficiency electrical design reduces operational costs compared to standard shaded-pole alternatives.
Common Questions
What capacitor is required for the US Motors 8066?
This motor typically requires a 10 MFD / 370V run capacitor for optimal torque and speed regulation; always check the nameplate for the current production specification.
Can this motor replace a 1/2 HP or 1/3 HP motor?
While the 3/4 HP rating provides higher torque, ensure the physical frame size and shaft dimensions match your existing housing before upgrading.
How do I change the rotation on the 8066 motor?
Rotation is easily reversed via the industry-standard lead plug-in connections located on the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $275.61
-65%$275.61
$96.46Nidec-US Motors 8066 Blower Motor
The Nidec-US Motors 8066 3/4 HP Blower Motor is a high-performance multi-speed shaded pole motor designed for direct-drive furnace and air handler applications. Operating at 208-230Vac with a rated speed of 1075 RPM, this 48-frame motor features a reversible rotation design to accommodate various blower wheel configurations. Built with Class B insulation and an open air-over (OAO) enclosure, it ensures efficient thermal management during continuous duty operation. Technicians often select the 8066 as a reliable HVAC replacement motor due to its 3-speed flexibility and 1/2-inch diameter by 4-inch length shaft, which fits standard mounting brackets. Its permanent split capacitor (PSC) design provides the high starting torque required for heavy-duty residential and light commercial fan coils. When performing a Nidec 8066 installation, ensure the capacitor is sized correctly to maintain specified amperage and prevent overheating.
Key Benefits
- Versatile Multi-Speed Performance: Features 3 distinct speed taps to fine-tune airflow for heating and cooling cycles.
- Universal Compatibility: Standard 48-frame diameter and reversible rotation simplify HVAC motor cross-referencing.
- Enhanced Durability: Equipped with auto-reset thermal overload protection to prevent winding failure during high-static conditions.
- Quiet Operation: Precision-balanced rotor minimizes vibration and mechanical noise within the ductwork.
- PSC Efficiency: High-efficiency electrical design reduces operational costs compared to standard shaded-pole alternatives.
Common Questions
What capacitor is required for the US Motors 8066?
This motor typically requires a 10 MFD / 370V run capacitor for optimal torque and speed regulation; always check the nameplate for the current production specification.
Can this motor replace a 1/2 HP or 1/3 HP motor?
While the 3/4 HP rating provides higher torque, ensure the physical frame size and shaft dimensions match your existing housing before upgrading.
How do I change the rotation on the 8066 motor?
Rotation is easily reversed via the industry-standard lead plug-in connections located on the motor housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
