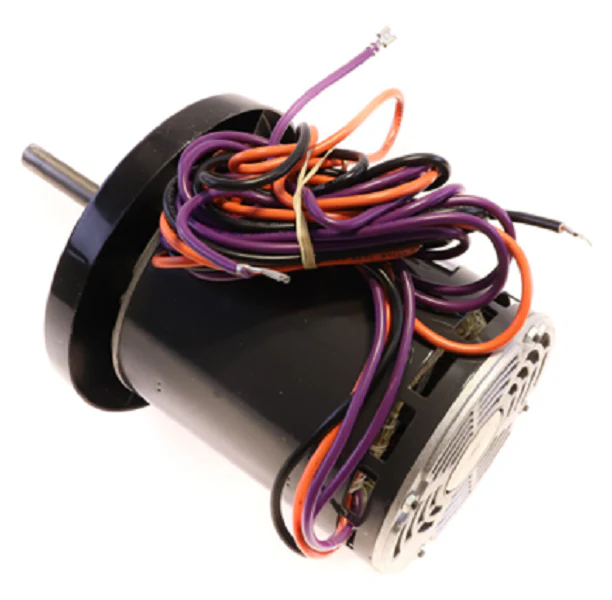

Nidec-US Motors 8055 Condenser Motor
When you're dealing with a high-demand Lennox condenser fan motor replacement or a similar light commercial application, the Nidec-US Motors 8055 is the robust 1 HP condenser motor you need on the truck. This 460V condenser fan motor is engineered for continuous duty in air-over applications, delivering a steady 1080 RPM to maintain critical head pressure. Built on a 48Y NEMA frame with a 5.6-inch diameter, it features a 7-inch by 5/8-inch shaft equipped with a water shield to protect the internal ball bearings from moisture and debris. As a Permanent Split Capacitor (PSC) motor, it requires a 15 MFD 370V capacitor for optimal performance and efficiency.
The US Motors 8055 is designed with an Open Drip Proof (ODP) enclosure and Class B insulation, making it a reliable HVAC replacement motor for demanding outdoor environments. With its 2.5-amp full-load rating and automatic thermal overload protection, this motor provides the durability required for commercial condenser fan motor service. Whether you are cross-referencing an 88C7301 or a K55HXBSF9500, this unit serves as a direct-fit solution that stands up to 40°C ambient temperatures.
Key Benefits:- High-Efficiency Cooling: The 1 HP rating and 1080 RPM output ensure maximum airflow across the coils, critical for preventing compressor overheating.
- Enhanced Durability: Equipped with double-shielded ball bearings and a 5/8" diameter shaft with a water slinger for extended service in all-weather conditions.
- Lennox Compatibility: Specifically designed as a powerhouse aftermarket replacement for high-static Lennox and other top-tier commercial condensing units.
- Simplified Installation: Standard 48Y frame mounting and 77-inch leads facilitate easy integration into a variety of chassis.
- What capacitor is required for the US Motors 8055? This motor requires a 15 MFD / 370V run capacitor (not included) to ensure proper starting torque and running efficiency.
- Can this motor be mounted in any orientation? It is primarily designed for shaft-up or shaft-down outdoor condenser applications where airflow is drawn over the motor body.
- How do I change the rotation of this motor? The rotation is factory-set to CWLE (Clockwise Lead End), which is CCWSE (Counter-Clockwise Shaft End), but specifies rotation can often be adjusted via lead reversal depending on the specific wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
