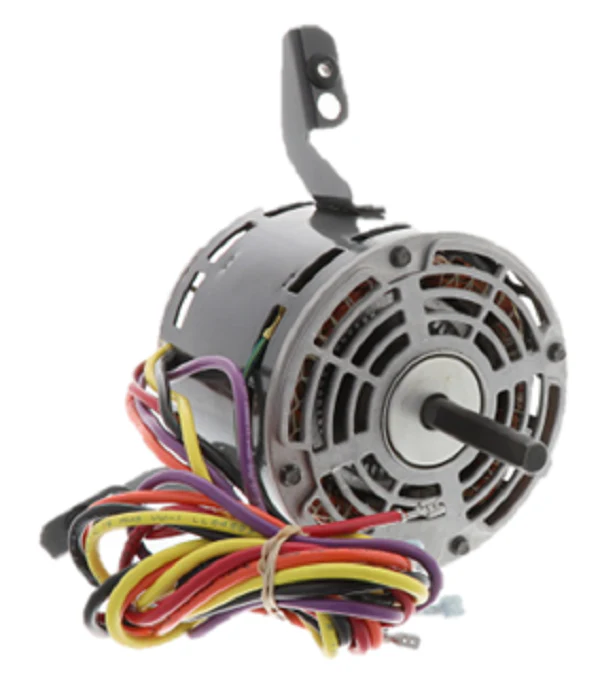

Nidec-US Motors 8052 Blower Motor
The Nidec US Motors 8052 is a professional-grade 1/3 HP blower motor engineered for high-static condenser and air handling applications requiring a 825 RPM operating speed. This Permanent Split Capacitor (PSC) motor operates on 208-230Vac single-phase power, drawing a nominal 1.9 Amps. Built with a 48Y NEMA frame and an Open Air Over (OAO) enclosure, it ensures optimal thermal management during continuous duty cycles. The SAB bearing system provides reliable shaft support, while the bracket mount configuration allows for straightforward integration into existing HVACR systems. As a veteran-preferred HVAC replacement motor, the 8052 is designed for thermal efficiency and longevity in demanding environments where precise airflow control is mandatory. Ensure you match the capacitance requirements of your specific condenser fan motor setup to maintain peak torque and efficiency. This single phase motor is a standard-service solution for contractors prioritizing drop-in compatibility and rigorous field performance.
- Optimized 825 RPM Performance: Specifically calibrated for condenser fan applications where lower speeds are required to reduce noise and improve heat transfer.
- Robust 48Y Frame Construction: Provides a versatile footprint with a bracket mount design that fits a wide range of OEM HVAC equipment.
- Open Air Over Enclosure: Maximizes heat dissipation by utilizing the system's airflow to cool the motor windings during operation.
- High-Efficiency PSC Design: Reduces electrical consumption and operational costs compared to older shaded-pole alternatives.
Common Questions
What capacitor is required for the US Motors 8052?
This motor typically requires a 7.5 MFD / 370V run capacitor, though you should always verify the specific rating on the motor nameplate before installation to ensure proper phase displacement.
Can the 8052 be used in an enclosed fan application?
No, this motor features an Open Air Over (OAO) rating, meaning it must be mounted within the path of the fan's airflow to prevent overheating and premature stator failure.
Is this motor reversible in the field?
Most Nidec US Motors in this class feature lead-reversal capabilities or are CW/CCW selectable; always check the wiring diagram on the housing to confirm rotation before securing the fan blade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $233.96
-65%$233.96
$81.89Nidec-US Motors 8052 Blower Motor
The Nidec US Motors 8052 is a professional-grade 1/3 HP blower motor engineered for high-static condenser and air handling applications requiring a 825 RPM operating speed. This Permanent Split Capacitor (PSC) motor operates on 208-230Vac single-phase power, drawing a nominal 1.9 Amps. Built with a 48Y NEMA frame and an Open Air Over (OAO) enclosure, it ensures optimal thermal management during continuous duty cycles. The SAB bearing system provides reliable shaft support, while the bracket mount configuration allows for straightforward integration into existing HVACR systems. As a veteran-preferred HVAC replacement motor, the 8052 is designed for thermal efficiency and longevity in demanding environments where precise airflow control is mandatory. Ensure you match the capacitance requirements of your specific condenser fan motor setup to maintain peak torque and efficiency. This single phase motor is a standard-service solution for contractors prioritizing drop-in compatibility and rigorous field performance.
- Optimized 825 RPM Performance: Specifically calibrated for condenser fan applications where lower speeds are required to reduce noise and improve heat transfer.
- Robust 48Y Frame Construction: Provides a versatile footprint with a bracket mount design that fits a wide range of OEM HVAC equipment.
- Open Air Over Enclosure: Maximizes heat dissipation by utilizing the system's airflow to cool the motor windings during operation.
- High-Efficiency PSC Design: Reduces electrical consumption and operational costs compared to older shaded-pole alternatives.
Common Questions
What capacitor is required for the US Motors 8052?
This motor typically requires a 7.5 MFD / 370V run capacitor, though you should always verify the specific rating on the motor nameplate before installation to ensure proper phase displacement.
Can the 8052 be used in an enclosed fan application?
No, this motor features an Open Air Over (OAO) rating, meaning it must be mounted within the path of the fan's airflow to prevent overheating and premature stator failure.
Is this motor reversible in the field?
Most Nidec US Motors in this class feature lead-reversal capabilities or are CW/CCW selectable; always check the wiring diagram on the housing to confirm rotation before securing the fan blade.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
