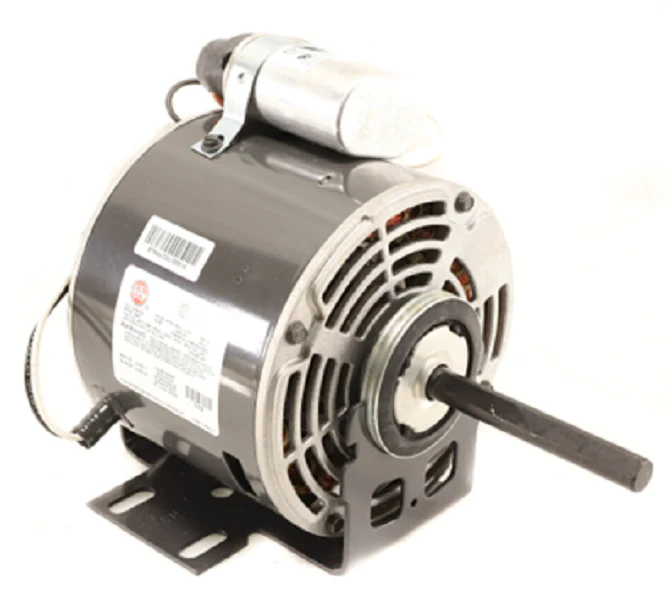

Nidec-US Motors 7232 Condenser Motor
The Nidec-US Motors 7232 Condenser Motor is a high-performance direct drive blower motor engineered for demanding commercial refrigeration and HVACR applications. Operating as a Permanent Split Capacitor (PSC) motor, this 1/3 HP unit is rated for 208-230Vac single-phase power, delivering a consistent 1625 RPM at 2.9 amps. Built with a 48Y NEMA frame size and SAB bearing (Sleeve Bearing), it utilizes a hub mount configuration to ensure stability and vibration-free operation in Open Drip-Proof (ODP) environments. Designed for efficiency, the 7232 is a reliable HVAC replacement motor for Hill Refrigeration and other major OEM systems requiring a 5.6-inch diameter motor. For a clean installation, verify your capacitor matches the required 6 MFD/370V specifications to maintain proper motor amperage draw and avoid overheating the automatic reset thermal overload protector.
- Universal Compatibility: Serves as a direct replacement for various Hill Refrigeration and OEM 5.6-inch diameter motors.
- High-Speed Performance: Delivers 1625 RPM for optimal airflow across condenser coils in high-ambient conditions.
- Industrial Build: Features a rugged 48Y frame and sleeve bearings designed for continuous duty cycles.
- Thermal Protection: Includes an automatic reset thermal overload to prevent stator damage during voltage fluctuations.
- Standardized Mounting: Utilizes a hub mount or resilient base for straightforward integration into existing blower housings.
Common Questions
Can I use this motor to replace a different brand with the same specs?
Yes, as long as the 1/3 HP rating, 208-230V voltage, 1625 RPM, and 48Y frame size match your existing unit. This model is often used to cross-reference Hill Refrigeration and Emerson K55 series motors.
Does this motor require a specific capacitor?
Yes, this PSC motor requires a 6 MFD/370V capacitor for proper starting torque and running efficiency. Always install a new capacitor when replacing the motor to ensure peak performance.
Is the rotation reversible?
While specific to the 7232 design parameters, these units are typically configured for specific fan blade pitches. Verify the rotation requirements of your specific refrigeration unit before final installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
