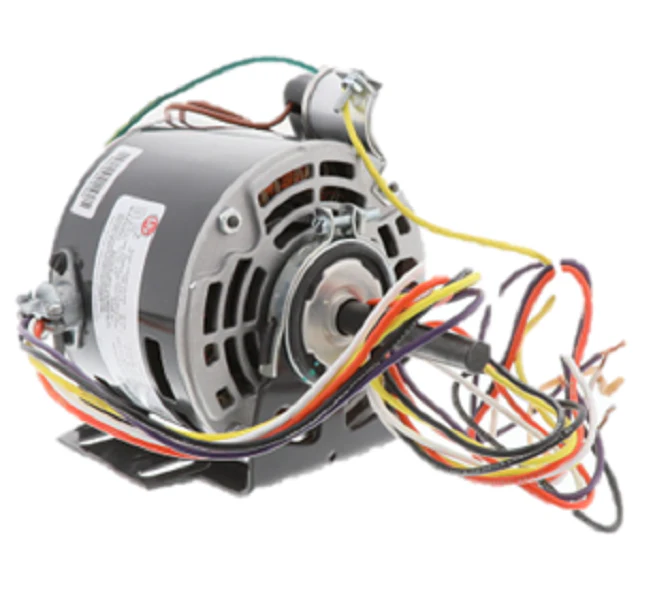

Nidec-US Motors 722P Motor
For industrial-grade air handling and direct-drive blower applications, the Nidec-US Motors 722P motor is a versatile 1/6 HP blower motor engineered for replacement in 21 and 29 frame GE-style units. Operating at a synchronous speed of 1550 RPM, this dual voltage motor supports both 115V or 230V single-phase configurations, drawing 2.4/1.2 amps respectively. Built with a Permanent Split Capacitor (PSC) design, it includes the necessary capacitor and features 36-inch leads for straightforward integration.
The model 722P motor utilizes a 42Y frame with an Open Drip Proof (ODP) air-over enclosure, designed for continuous duty in ventilated environments. Contractors will benefit from the automatic reset thermal overload protector and the self-aligning sleeve bearing system, which incorporates an all-angle thrust system for flexible mounting orientations. This resilient mount motor features a 1/2-inch diameter shaft and is a frequent choice for HVAC replacement motors in furnace blowers and residential air handlers.
Key Benefits:- Dual Voltage Versatility: Field-selectable 115/230V motor wiring allows for standard or high-voltage applications.
- Enhanced Thermal Protection: Integrated automatic reset thermal overload prevents winding failure during restricted airflow conditions.
- All-Angle Mounting: Sleeve bearings with a dedicated thrust system support horizontal or vertical shaft positions.
- Industry Compatibility: Designed as a 21/29 frame replacement motor, fitting a wide range of legacy GE and blower assemblies.
- Is the capacitor included with this motor? Yes, the 722P is a PSC design and is supplied with the required run capacitor for installation.
- Does this motor support variable speed control? This is a single-speed motor; for variable speed applications, an ECM or multi-tap alternative should be used.
- What is the rotation direction? This model is configured for clockwise rotation from the lead end (CWLE) or counter-clockwise from the shaft end (CCWSE).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
