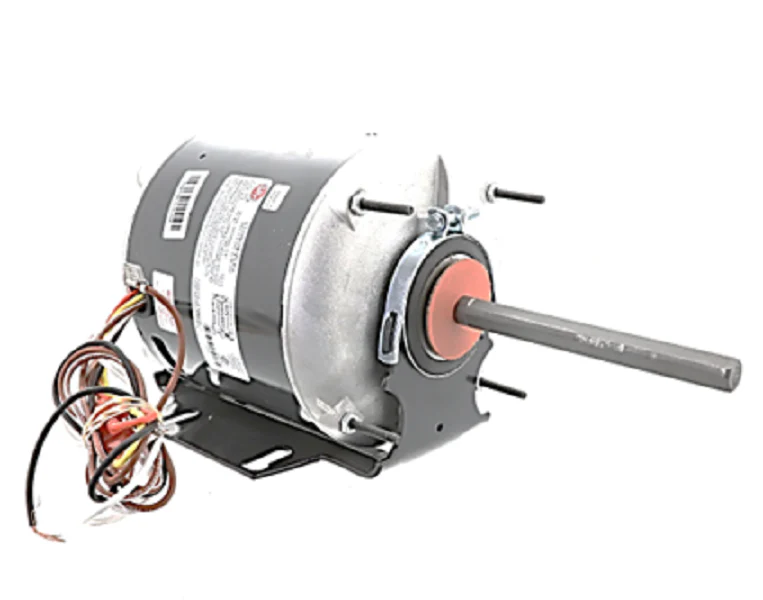

Nidec-US Motors 7025 Motor
The Nidec-US Motors 7025 Motor is a high-performance PSC Condenser Fan Motor engineered for heavy-duty residential and commercial HVACR applications. Operating at 1/2 HP and a synchronous speed of 1075 RPM, this 230V single phase motor provides reliable heat dissipation for outdoor condensing units. Built on a 48Z NEMA frame size, it features an Open Dripproof Air Over (OAO) enclosure, allowing for maximum airflow through the motor windings to prevent thermal overload during continuous duty cycles. The unit is equipped with 6203 ball bearings for reduced friction and extended mechanical life, while the resilient mount design significantly minimizes vibration transfer to the chassis. This 1/2HP motor draws 3.1 Amps at full load and requires a 7.5 MFD / 370V capacitor for optimal torque and efficiency. Designed as a versatile HVAC replacement motor, the 7025 supports reversible rotation to match various fan blade configurations, ensuring compatibility with a wide range of OEM condensing equipment.
Key Benefits- Optimized Cooling Performance: The 1075 RPM speed is calibrated for standard condenser fan blades, ensuring efficient pressure regulation and heat exchange.
- Reduced Mechanical Noise: Integrated resilient mounting dampens harmonic vibrations, essential for maintaining quiet operation in residential zones.
- Industrial-Grade Build: Precision-engineered 6203 bearings and Class B insulation allow the motor to maintain stability in high-ambient outdoor environments.
- Field Versatility: Features reversible rotation and 48Z frame geometry with extended studs, making it a reliable direct replacement motor for multiple brands.
- Internal Protection: Equipped with an automatic reset thermal overload protector to safeguard the windings against voltage spikes or restricted airflow.
What capacitor is required for the Nidec 7025?
This motor is designed to run with a 7.5 MFD / 370 VAC capacitor. Using the incorrect capacitance can lead to excessive heat and premature winding failure.
Can I use this motor in a vertical shaft-down application?
Yes, the 6203 ball bearing system and the Air Over enclosure are rated for all-angle mounting, provided the unit stays within the airflow stream of the fan.
Is the rotation reversible in the field?
The US Motors 7025 features a quick-connect lead design that allows for simple CW or CCW rotation adjustment during installation to match the existing fan pitch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
