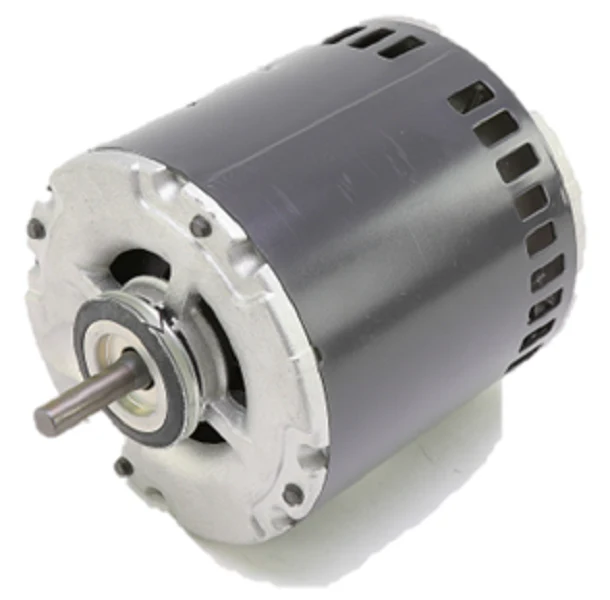

Nidec-US Motors 6770 Blower Motor
The Nidec-US Motors 6770 Blower Motor is a high-performance split phase motor specifically engineered for evaporative cooler applications and industrial air moving tasks. This 3/4 HP motor operates on 115Vac and features a dual-speed configuration of 1725/1140 RPM, allowing for precise control over airflow requirements. Built on a 56Z NEMA frame size with a 1/2" shaft, it is designed for drop-in compatibility in major OEM equipment. With a 10.9 amp full-load rating and continuous duty cycle, this motor utilizes a robust sleeve bearing system (re-oilable) and Class B insulation to handle high-ambient temperatures and extended run times. To ensure system longevity, the unit includes an automatic reset thermal overload protector and a corrosion-resistant rotor core. For technicians replacing older equipment, the industry standard hub to hub dimension and resilient ring mount simplify the installation process while significantly reducing vibration and noise during operation.
- Versatile Performance: Dual-speed 1725/1140 RPM capability allows for optimized cooling and energy management in evaporative systems.
- Industrial Durability: Features zinc-phosphate stator studs and a corrosion-resistant actuator assembly for harsh environmental conditions.
- Simplified Installation: 56Z frame and standard 1/2" diameter shaft ensure a precise fit for standard blower wheels and pulleys.
- Operational Safety: Integrated automatic reset thermal protector prevents motor burnout during unexpected load fluctuations.
- Quiet Operation: Designed with re-oilable sleeve bearings and resilient mounting to minimize acoustic output in commercial settings.
Common Questions:
Is the Nidec 6770 compatible with 230V systems?
No, this specific model is wound for single-phase 115Vac operation only. Using it with higher voltage will cause immediate component failure.
What is the proper rotation for this blower motor?
The motor is configured for Clockwise (CW) rotation as viewed from the shaft end, which is the standard for most evaporative cooler blowers.
Can this motor be used in high-moisture environments?
Yes, this model features an Open Drip Proof (ODP) enclosure and corrosion-resistant materials, making it ideal for evaporative cooling units where moisture is present.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
