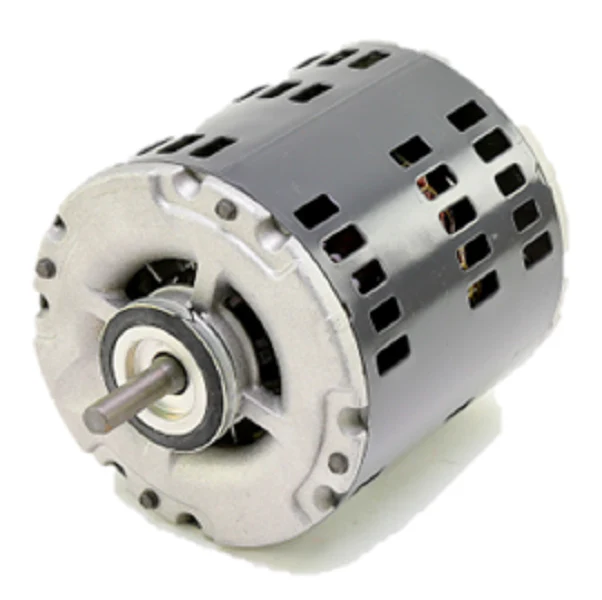

Nidec-US Motors 6769 Blower Motor
The Nidec-US Motors 6769 Blower Motor is a heavy-duty 3/4HP permanent split capacitor (PSC) motor engineered for commercial and industrial ventilation systems requiring a reliable 1725 RPM single-speed output. Operating on a 115Vac power supply with a full-load current of 10.7 Amps, this unit is built for continuous duty performance in demanding environments. It features a 56Z NEMA frame size and a 1/2" diameter shaft, making it a versatile replacement for belt-drive blower applications. The inclusion of high-grade ball bearings ensures minimal friction and enhanced longevity when handling radial and axial loads. This HVAC blower motor is designed for open dripproof (ODP) environments, facilitating optimal airflow over internal windings to maintain thermal stability during high-static operation. When sourcing a replacement blower motor, the 6769 provides the mechanical torque necessary to maintain system static pressure and CFM requirements in direct-drive or belt-driven configurations.
Key Benefits- Durable Ball Bearing System: Engineered for reduced mechanical wear and superior heat dissipation compared to sleeve bearing alternatives.
- High Torque Output: The 3/4HP 1725 RPM rating provides consistent performance for standard 56-frame industrial fan setups.
- Standardized 56Z Frame: Allows for simplified mounting and alignment in various residential and commercial air handlers.
- Optimized Efficiency: The 10.7 Amp draw at 115V ensures reliable starting torque without overloading standard branch circuits.
Is the 6769 motor reversible?
Most Nidec 56Z frame motors in this class feature reversible rotation; verify the lead connection diagram on the nameplate to match your blower’s specific rotation requirement.
What does the 'Z' in 56Z frame mean?
The 'Z' suffix indicates a non-standard shaft dimension or mounting feature—in this case, confirming compatibility with the 1/2" shaft specification is critical for pulley or fan blade fitment.
Can this motor be used with a VFD?
This is a single-speed 115V motor typically used for across-the-line starting; it is not recommended for use with variable frequency drives unless the specific application and VFD are rated for PSC motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
