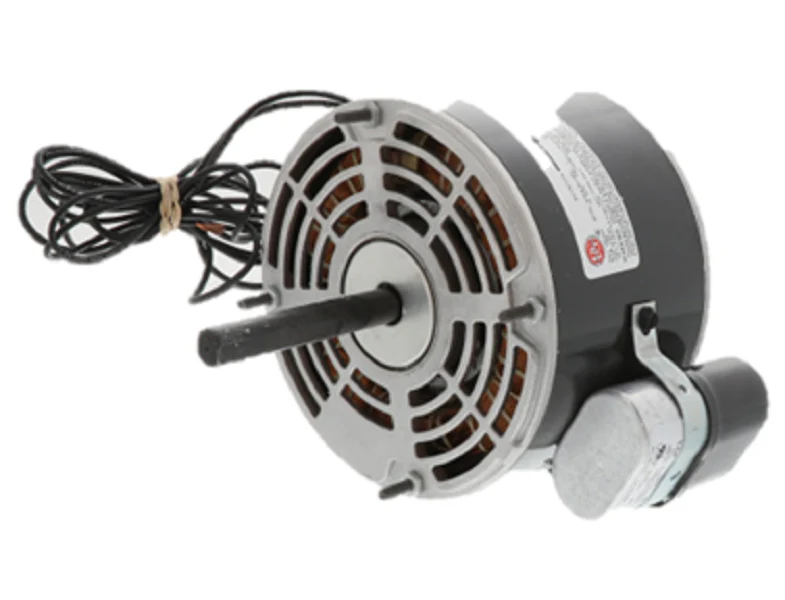

Nidec-US Motors 6135 Motor
The US Motors 6135 is a high-performance 1/6 HP condenser fan motor engineered for demanding commercial and residential refrigeration applications. Designed as a Permanent Split Capacitor (PSC) motor, this 48Y frame motor provides consistent torque and enhanced electrical efficiency. Operating at a 1550 RPM base speed and rated for 208-230V, it is optimized for high-static pressure environments. The ODP (Open Drip Proof) enclosure allows for maximum heat dissipation through air over (OAO) cooling, preventing thermal fatigue during continuous duty cycles. This single-phase HVAC motor features self-aligning ball bearings and an automatic reset thermal overload protector to ensure maximum uptime for critical cooling infrastructure. With a 1/2" x 3.05" keyed shaft and stud mounting configuration, the Nidec 6135 serves as a reliable direct replacement motor for various OEM condenser units, maintaining factory performance standards for refrigeration technicians and mechanical contractors.
- System Efficiency: PSC design optimizes power consumption and reduces operating costs in 208-230V systems.
- Rugged Construction: Durable steel 48Y frame and ODP enclosure designed for vertical or horizontal condenser duty.
- Integrated Safety: Automatic reset thermal protector prevents winding damage due to overheating or airflow restriction.
- Ready for Install: Dual-voltage compatibility (50/60 Hz) and standardized 1/2-inch shaft diameter ensure rapid field installation.
Common Questions
Is the rotation of this motor reversible in the field?
No, the 6135 is a fixed-rotation motor specified for Clockwise Lead End (CWLE) operation. You must verify the rotation of the existing fan blade before installation to ensure proper airflow direction.
What capacitor size is required for this motor?
This motor typically requires a 5 MFD / 370 VAC capacitor. Utilizing a mis-sized capacitor can lead to premature winding failure or start-up issues, so always check the nameplate during service.
Can this motor be used in totally enclosed environments?
As an Open Drip Proof (ODP) motor, it relies on "Air Over" cooling. It must be positioned within the airstream of the fan it is driving to maintain safe operating temperatures during continuous use.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $161.97
-65%$161.97
$56.69Nidec-US Motors 6135 Motor
The US Motors 6135 is a high-performance 1/6 HP condenser fan motor engineered for demanding commercial and residential refrigeration applications. Designed as a Permanent Split Capacitor (PSC) motor, this 48Y frame motor provides consistent torque and enhanced electrical efficiency. Operating at a 1550 RPM base speed and rated for 208-230V, it is optimized for high-static pressure environments. The ODP (Open Drip Proof) enclosure allows for maximum heat dissipation through air over (OAO) cooling, preventing thermal fatigue during continuous duty cycles. This single-phase HVAC motor features self-aligning ball bearings and an automatic reset thermal overload protector to ensure maximum uptime for critical cooling infrastructure. With a 1/2" x 3.05" keyed shaft and stud mounting configuration, the Nidec 6135 serves as a reliable direct replacement motor for various OEM condenser units, maintaining factory performance standards for refrigeration technicians and mechanical contractors.
- System Efficiency: PSC design optimizes power consumption and reduces operating costs in 208-230V systems.
- Rugged Construction: Durable steel 48Y frame and ODP enclosure designed for vertical or horizontal condenser duty.
- Integrated Safety: Automatic reset thermal protector prevents winding damage due to overheating or airflow restriction.
- Ready for Install: Dual-voltage compatibility (50/60 Hz) and standardized 1/2-inch shaft diameter ensure rapid field installation.
Common Questions
Is the rotation of this motor reversible in the field?
No, the 6135 is a fixed-rotation motor specified for Clockwise Lead End (CWLE) operation. You must verify the rotation of the existing fan blade before installation to ensure proper airflow direction.
What capacitor size is required for this motor?
This motor typically requires a 5 MFD / 370 VAC capacitor. Utilizing a mis-sized capacitor can lead to premature winding failure or start-up issues, so always check the nameplate during service.
Can this motor be used in totally enclosed environments?
As an Open Drip Proof (ODP) motor, it relies on "Air Over" cooling. It must be positioned within the airstream of the fan it is driving to maintain safe operating temperatures during continuous use.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
