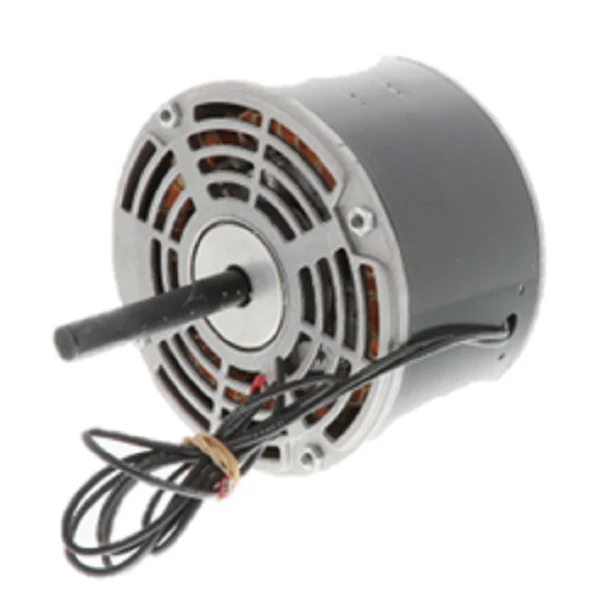

Nidec-US Motors 6078 Motor
For service technicians requiring a robust solution for carbonator pump assemblies, the Nidec-US Motors 6078 provides engineered reliability. This 1/2 HP carbonator pump motor is built for continuous duty, featuring a specialized 48YZ frame with an extended hub and a short slotted shaft designed specifically for close-coupling to standard carbonator pumps. Operating at a synchronous speed of 1800 RPM with a 1725 RPM base speed, this dual voltage 120/240V motor supports flexible field wiring for various power supplies.
The Nidec 6078 utilizes a resilient base mount to minimize vibration transfer in commercial beverage systems and industrial pumping applications. Internal construction highlights include ball bearings for high-load durability and an automatic reset thermal overload protector to prevent winding failure during stall conditions. With reversible rotation capabilities and a Class B insulation rating, this split-phase ODP motor provides the technical versatility needed for rapid on-site replacement in demanding environments.
Key Benefits- Direct Carbonator Coupling: Features a specialized end shield and slotted shaft for seamless integration with equipment.
- Dual Voltage Versatility: Wired for 120V or 240V configurations to match existing circuit requirements.
- Enhanced Durability: Equipped with ball bearings and a steel frame for long-term mechanical stability.
- Thermal Safety: Built-in automatic reset protector prevents damage from overheating or voltage drops.
- Quiet Operation: Resilient base design dampens harmonic vibration during continuous duty cycles.
Can I use this motor for general fan or blower applications?
No, the 6078 is specifically engineered for carbonator duty only. The specialized 48YZ frame and short slotted shaft are designed for pump coupling and will not accommodate standard pulleys or fan blades.
How do I change the rotation of the motor?
The motor features reversible rotation. Directional changes are made by swapping internal lead connections as specified on the wiring diagram located on the motor nameplate.
Does this motor require a separate start capacitor?
This is a split-phase motor design, which does not require an external capacitor for operation, simplifying the electrical setup in tight spaces.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
