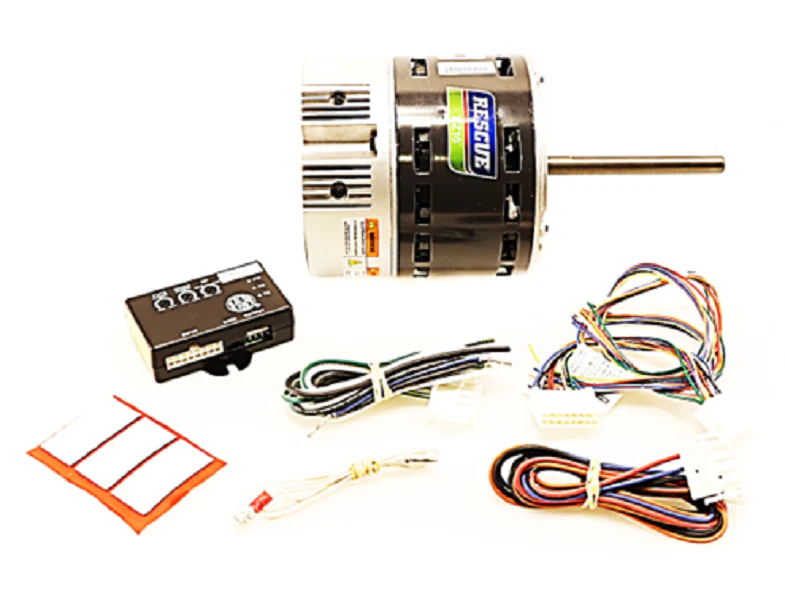

Nidec-US Motors 5862 Motor
The Nidec US Motors 5862 is a professional-grade 1/2 HP blower motor engineered for high-performance HVAC applications where reliability and efficiency are non-negotiable. This versatile PSC (Permanent Split Capacitor) motor features a multi-voltage design, operating seamlessly on 115/208-230V single-phase power. Built with a 48-frame diameter and an all-angle mounting capability, it serves as a robust replacement for many OEM direct-drive furnace blowers and air handlers. The unit utilizes Class B insulation and is thermally protected to prevent winding failure under high-demand cycles. For contractors, the Nidec 5862 offers a streamlined diagnostic and installation process, providing the necessary torque and 1075 RPM speed for optimal airflow management in residential and light commercial systems. Its reversible rotation and standard shaft dimensions ensure broad HVAC motor compatibility across various equipment brands.
Technical Specifications & Benefits
- Dual Voltage Versatility: Ready for 115V or 208-230V field wiring, reducing the need for multiple truck-stock SKUs.
- Optimized Airflow: Rated at 1075 RPM to maintain static pressure requirements in modern ductwork systems.
- Durable Construction: Features ball bearings and a totally enclosed air-over (TEAO) or open drip-proof (ODP) design for maximum heat dissipation.
- Simple Integration: Standard 1/2-inch by 4-inch shaft with a flat allows for secure blower wheel attachment.
Common Contractor Questions
What capacitor is required for the US Motors 5862?
This motor typically requires a 7.5 MFD / 370V ??? 10 MFD / 370V run capacitor depending on the specific horsepower tap used; always check the nameplate before energizing the circuit.
Can this motor be mounted in any orientation?
Yes, the 5862 is designed with an all-angle thrust system, making it suitable for shaft-up, shaft-down, or horizontal applications in air handlers.
Is this a direct replacement for 56-frame motors?
No, this is a 48-frame motor. While it can replace some 56-frame units using a mounting adapter, its primary design is for standard 5.6-inch diameter blower housings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
