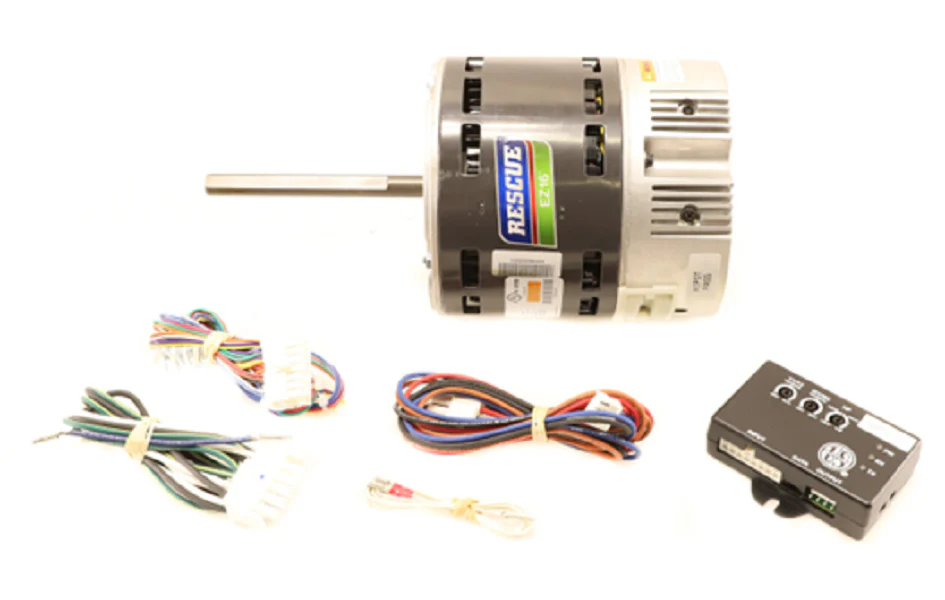

Nidec-US Motors 5861 Motor
For service technicians needing a reliable, universal solution for multi-horsepower applications, the Nidec-US Motors 5861 Rescue EZ16 stands as a premier ECM blower motor replacement. This 16-pin variable speed motor is engineered to replace thousands of OEM models, supporting a flexible range of 3/4 HP to 1/3 HP. Operating on a dual-voltage platform of 115/208-230V, it features direct drive capabilities and a 1075 RPM base. The constant torque operation ensures consistent airflow performance in furnaces and air handlers, while the Open Air Over (OAO) enclosure and ball bearing construction provide the durability required for intensive cycles. Utilizing the included EZ Interface (EZI), contractors can perform field tunable adjustments for voltage and horsepower at the point of installation. This motor is universally compatible with 2.0, 2.3, and EON motors, offering 6,000V surge protection and reversible rotation to streamline truck stock and eliminate repeat trips to the wholesaler.
Key Benefits- Multi-HP Versatility: Replaces 3/4, 1/2, and 1/3 HP motors with a single unit, reducing inventory overhead.
- Universal Compatibility: Drop-in 16-pin design works seamlessly with existing OEM wiring and control boards.
- Point-of-Installation Tuning: EZI allows for quick adjustment of airflow and motor parameters without external programming tools.
- High Efficiency: Delivers up to 82% efficiency, significantly exceeding standard PSC motor performance.
- Robust Protection: Features 40°C ambient ratings and industry-leading moisture protection for residential and light commercial use.
Can the 5861 replace a 16-pin GE ECM motor?
Yes, this unit is a direct 16-pin replacement for ECM 2.0, 2.3, and EON series motors commonly found in major HVAC brands.
Does this motor require a separate capacitor?
No, as an electronically commutated motor (ECM), it does not require a traditional run capacitor for operation.
How is the rotation adjusted?
Rotation is reversible and can be set via the hardware interface or auto-sensing depending on the specific system configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
