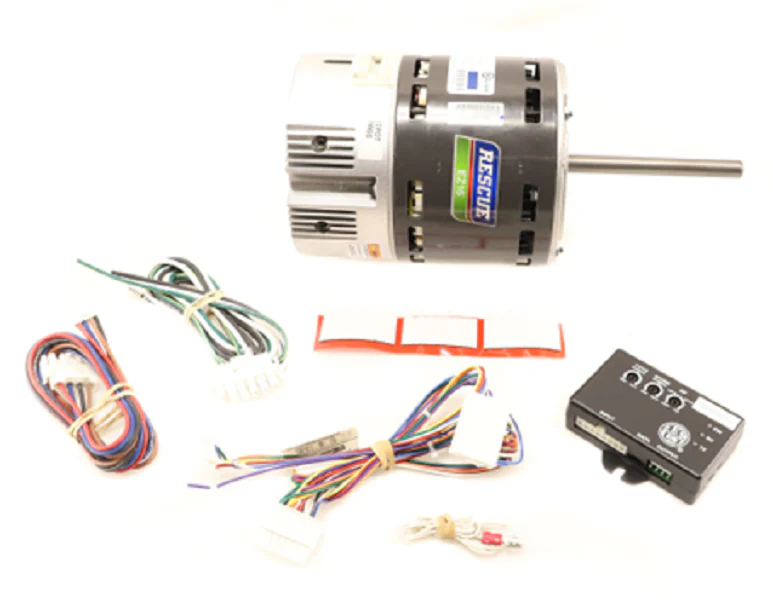

Nidec-US Motors 5860 Motor
The Nidec-US Motors 5860 is a heavy-duty 1/3 HP variable speed motor engineered for high-demand HVACR applications requiring precise airflow control. Operating on a versatile 115/208-230V dual voltage configuration, this ECM motor provides significant energy efficiency compared to standard PSC alternatives. Designed for direct-drive blower applications, the 5860 motor features constant torque performance, ensuring consistent static pressure management across varying ductwork conditions. Techs will appreciate the NEMA 48 frame construction and integrated electronics that simplify the replacement of OEM modules. This brushless DC motor utilizes advanced thermal overload protection and moisture-resistant windings to ensure reliability in unconditioned spaces. When diagnosing airflow issues or seeking a variable speed motor replacement, the 5860 offers the mechanical robustness and electrical flexibility required for modern high-efficiency systems.
- Universal Voltage Compatibility: Supports 115V and 208-230V inputs, reducing the need to carry multiple van stock units.
- High-Efficiency ECM Technology: Reduces power consumption and amperage draw while maintaining 1/3 HP output.
- Variable Speed Control: Allows for precision tuning of CFMs to meet specific HVAC system requirements.
- Durable Construction: Built by Nidec-US Motors with ball bearing design for extended mechanical life and quiet operation.
Common Questions
Can I use the Nidec 5860 to replace a standard 1/3 HP PSC motor?
Yes, provided the system controller is compatible with ECM signals. Upgrading to the 5860 variable speed motor improves efficiency and allows for better dehumidification cycles.
What is the frame size and mounting for this unit?
This is a standard 48 Frame motor. It typically supports belly band mounting or standard stud mounts found in residential air handlers and furnaces.
How do I handle the dual voltage wiring on the 5860?
The motor features an internal sensing circuit or jumper configuration to toggle between 115V and 230V. Always verify the wiring diagram on the motor shell to match your line voltage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
