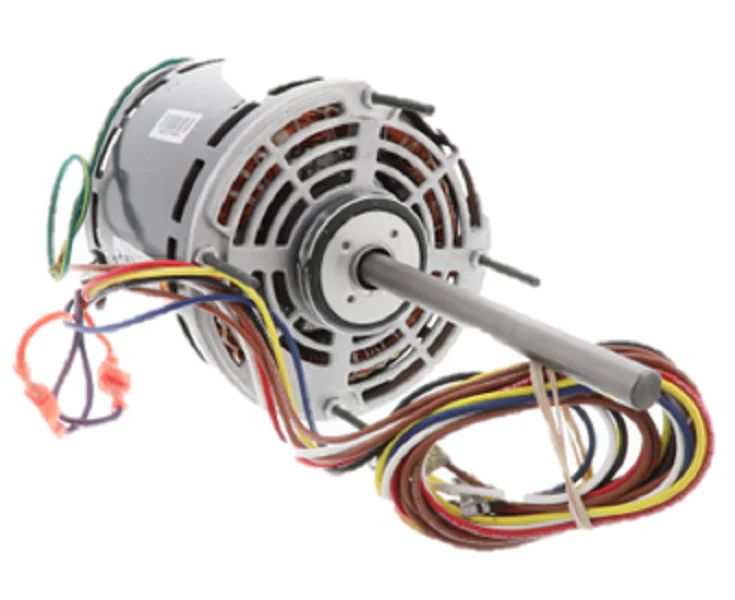

Nidec-US Motors 5845 Motor
The Nidec-US Motors 5845 Motor is a professional-grade 3/4 HP furnace blower motor engineered for high-static residential and light commercial air handling applications. This PSC (Permanent Split Capacitor) powerhouse operates on 115Vac single-phase power, pulling 10.6 full-load amps while maintaining a rated speed of 1075 RPM. Designed with a 4-speed tap configuration, it allows technicians to fine-tune airflow for heating and cooling cycles. The 48Z NEMA frame features a 5-5/8 inch diameter and utilizes an Open Air Over (OAO) enclosure, ensuring optimal heat dissipation during continuous duty operation. For versatile mounting, this reversible rotation blower motor supports both resilient ring and stud mount setups and includes a 1/2" diameter x 6" long shaft for secure furnace blower wheel integration. The self-aligning sleeve bearings are equipped with an all-angle thrust system, permitting the motor to be mounted in any orientation without compromising internal stability.
Key Benefits- Multi-Speed Flexibility: Four distinct speed taps provide precise CFM control to match specific HVAC system requirements.
- Universal Compatibility: The reversible rotation and dual mounting options (ring or stud) make this a reliable direct drive blower motor replacement for various OEM brands.
- Enhanced Durability: Features Class B insulation and automatic thermal overload protection to prevent winding failure during high-ambient stress.
- Smooth Operation: Self-aligning sleeve bearings ensure quiet performance and long-term mechanical alignment in air-over applications.
What capacitor is required for the US Motors 5845?
This motor requires a 15 MFD / 370V capacitor for proper startup and running efficiency.
Can this motor replace a 3-speed or 2-speed blower motor?
Yes, as long as the voltage, amperage, and frame size specifications align, you can use the necessary speed taps and cap off the unused leads.
Is the rotation adjustable in the field?
Yes, the rotation is easily reversible by swapping the standard reversing leads located in the motor wiring harness.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $278.04
-65%$278.04
$97.31Nidec-US Motors 5845 Motor
The Nidec-US Motors 5845 Motor is a professional-grade 3/4 HP furnace blower motor engineered for high-static residential and light commercial air handling applications. This PSC (Permanent Split Capacitor) powerhouse operates on 115Vac single-phase power, pulling 10.6 full-load amps while maintaining a rated speed of 1075 RPM. Designed with a 4-speed tap configuration, it allows technicians to fine-tune airflow for heating and cooling cycles. The 48Z NEMA frame features a 5-5/8 inch diameter and utilizes an Open Air Over (OAO) enclosure, ensuring optimal heat dissipation during continuous duty operation. For versatile mounting, this reversible rotation blower motor supports both resilient ring and stud mount setups and includes a 1/2" diameter x 6" long shaft for secure furnace blower wheel integration. The self-aligning sleeve bearings are equipped with an all-angle thrust system, permitting the motor to be mounted in any orientation without compromising internal stability.
Key Benefits- Multi-Speed Flexibility: Four distinct speed taps provide precise CFM control to match specific HVAC system requirements.
- Universal Compatibility: The reversible rotation and dual mounting options (ring or stud) make this a reliable direct drive blower motor replacement for various OEM brands.
- Enhanced Durability: Features Class B insulation and automatic thermal overload protection to prevent winding failure during high-ambient stress.
- Smooth Operation: Self-aligning sleeve bearings ensure quiet performance and long-term mechanical alignment in air-over applications.
What capacitor is required for the US Motors 5845?
This motor requires a 15 MFD / 370V capacitor for proper startup and running efficiency.
Can this motor replace a 3-speed or 2-speed blower motor?
Yes, as long as the voltage, amperage, and frame size specifications align, you can use the necessary speed taps and cap off the unused leads.
Is the rotation adjustable in the field?
Yes, the rotation is easily reversible by swapping the standard reversing leads located in the motor wiring harness.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
