Nidec-US Motors 5831 Motor

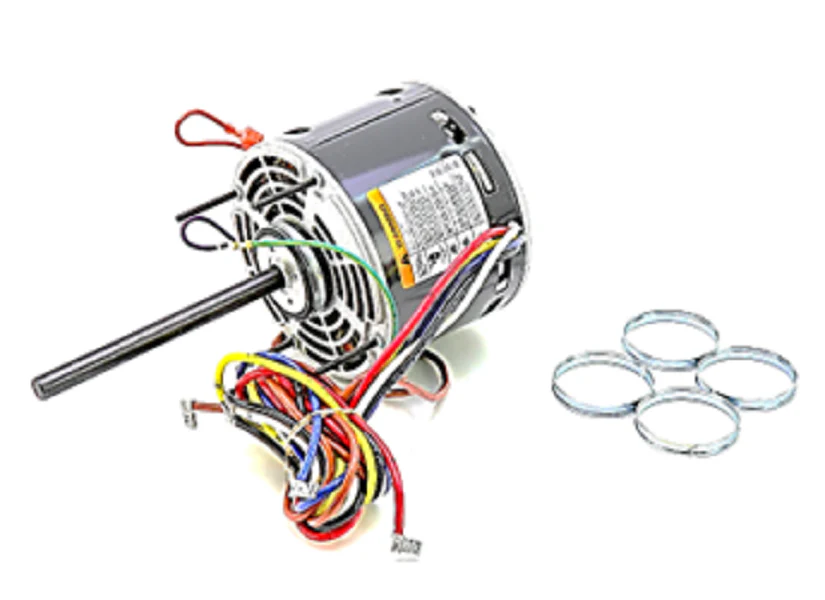

The Nidec-US Motors 5831 Motor is a high-performance 1/4 HP blower motor engineered for demanding direct drive fan and furnace applications. Operating at 1075 RPM with 4-speed versatility, this 208-230V PSC motor provides precise airflow control across a wide range of residential and light commercial HVAC systems. Built on a 48Y NEMA frame and utilizing a permanent split capacitor design, it draws a steady 1.8 Amps and features an Open Air Over (OAO) enclosure for efficient heat dissipation during continuous duty cycles. This 5.6-inch diameter US Motors 5831 includes self-aligning sleeve bearings and a 1/2-inch diameter shaft, allowing for flexible mounting via 2.25 or 2.5-inch hub rings or existing studs. The reversible rotation capability simplifies inventory, making it an essential universal HVAC replacement motor for technicians requiring a reliable, high-efficiency solution for PSC blower motor failures.
- Universal Compatibility: Features reversible rotation and multiple mounting options (ring or stud) to fit various furnace and blower configurations.
- Optimized Performance: The 4-speed motor design allows for tailored airflow, improving system efficiency and comfort levels.
- Durable Construction: Equipped with Class B insulation and an automatic reset thermal overload protector to prevent winding failure during high-ambient operation.
- Reliable Bearings: Utilizing self-aligning sleeve bearings with an all-angle thrust system ensures quiet operation and long-term stability in any orientation.
What capacitor is required for the US Motors 5831?
This motor requires a 5 MFD / 370V capacitor for proper startup and operation; always check the nameplate for specific capacitance requirements before installation.
Can this motor replace a single-speed 1075 RPM unit?
Yes, the 4-speed 5831 can replace lower-speed-count motors by selecting the appropriate lead wire for the desired speed, provided the 1/4 HP and 208-230V specs match.
Is the rotation difficult to change on this model?
No, the reversible rotation is easily handled via the lead wire connections, allowing for clockwise or counter-clockwise configuration in the field.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
