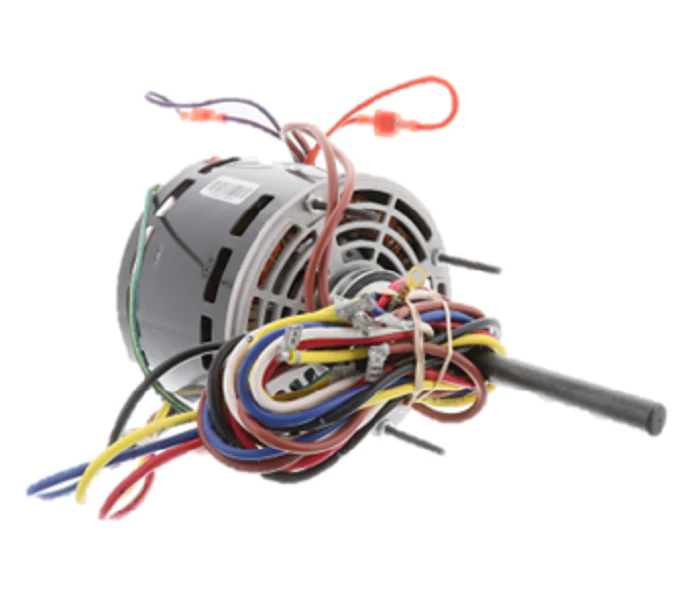

Nidec-US Motors 5830 Motor
The Nidec-US Motors 5830 is a heavy-duty, 1/4 HP HVAC blower motor designed for reliable performance in residential and light commercial forced-air systems. Operating on 115Vac single phase power, this direct drive blower motor features a high-efficiency Permanent Split Capacitor (PSC) design that maintains a standard 1075 RPM. With 4-speed taps, it provides precise airflow control to meet various heating and cooling demands, drawing a consistent 3.8 Amps under full load. Built on a rugged 48Y NEMA frame, the US Motors 5830 motor is engineered with a reversible rotation feature, allowing for versatile field installations regardless of lead end orientation. The open air over (OAO) enclosure ensures maximum heat dissipation, supported by self-aligning sleeve bearings that handle all-angle thrust. It utilizes a 1/2 inch shaft and offers flexible mounting options via ring or stud mount configurations, making it an ideal choice for furnace motor replacement applications.
Key Benefits
- Multi-Speed Versatility: The 4-speed design allows technicians to fine-tune system static pressure and CFM requirements.
- Ease of Installation: Features reversible rotation and ring/stud mounting to fit a wide variety of OEM blower housings.
- High Efficiency: The PSC motor design provides consistent torque and lower energy consumption compared to shaded-pole alternatives.
- Thermal Protection: Equipped with automatic reset thermal overload protection to prevent winding failure during high-ambient conditions.
- Standardized Fit: The 48Y frame size and 1/2" x 6" shaft ensure compatibility with standard 5-5/8 inch diameter motor mounts.
Common Questions
What capacitor is required for the US Motors 5830?
This motor requires a 5 MFD / 370 VAC capacitor for proper startup and operation. Using an incorrectly rated capacitor can cause overheating or failure to start.
Can this motor replace a single-speed blower motor?
Yes, the Nidec 5830 can replace single or multi-speed motors. Simply wire the highest speed tap if only one speed is required, or utilize the additional leads for upgraded system control.
Is this motor suitable for outdoor condenser units?
No, this is an Open Air Over (OAO) motor intended for indoor blower assemblies. It is not rated for exposure to rain or direct moisture found in outdoor condensing applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
