Nidec-US Motors 5642 Motor

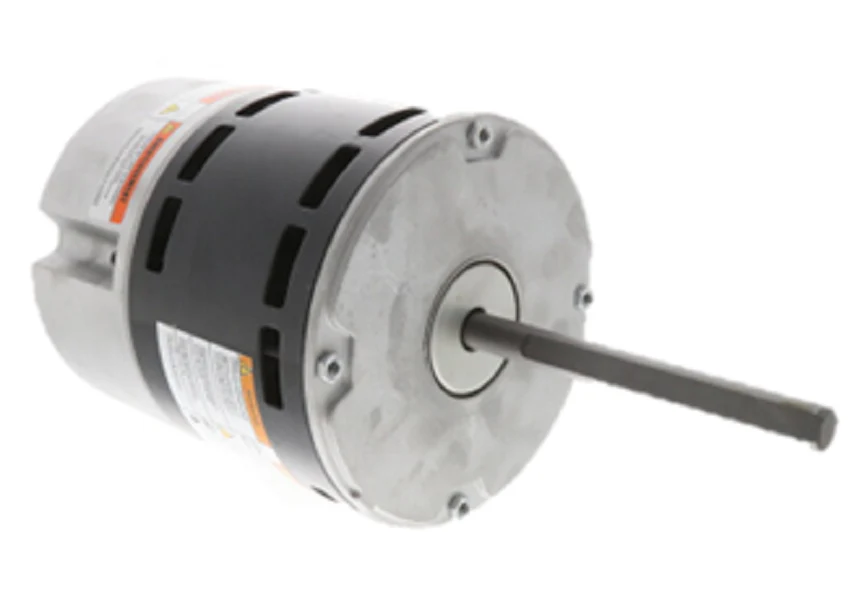

The Nidec-US Motors 5642 Blower Motor is a heavy-duty 3/4 HP replacement motor designed for direct-drive furnace and air handler applications. This multi-voltage HVAC motor operates on 115V or 208-230V, providing field flexibility for technicians managing various service calls. Built on a NEMA 48 frame, it features an Open Air Over (OAO) enclosure to facilitate maximum heat dissipation during continuous operation. With a rated speed of 1075 RPM and a high-torque 1-phase design, this motor maintains reliable static pressure performance. The 1/2-inch diameter by 4-inch long shaft is suited for standard blower wheels, while the belly band mount configuration ensures compatibility with multiple housing brackets. Designed for 50/60 Hz systems, this PSC blower motor provides the amperage stability (9.3A at 115V) required for modern high-efficiency residential and light commercial equipment.
Key Benefits for Contractors- Universal Voltage Compatibility: Supports 115/208-230V configurations, reducing the need to carry multiple single-voltage motors on service trucks.
- Enhanced Thermal Regulation: The Open Air Over (OAO) design utilizes the system's airflow to prevent internal winding overheating.
- Standardized Fit: 48-frame diameter and belly band mounting provide a drop-in replacement for many OEM direct-drive blower assemblies.
- Reversible Rotation: Features quick-connect leads for easy rotation changes in the field to match specific blower wheel requirements.
- Robust Construction: Engineered by US Motors for consistency in high-cycle heating and cooling applications.
What is the frame size and mounting for the 5642 motor?
This is a 48 frame motor specifically designed for belly band mounting, which allows the motor to be secured within the blower housing via a circular clamp.
Can this motor replace a 1/2 HP or 1/3 HP motor?
While you can often upsize horsepower, you must ensure the 9.3 Amp rating does not exceed the capacity of your control board or capacitor, and that the physical dimensions and 1075 RPM match the original specifications.
Does this motor include a capacitor?
This permanent split capacitor (PSC) motor requires a specific run capacitor (typically 10MFD/370V, though you should verify the label) for proper phasing and torque; capacitors are generally sold separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $261.65
-65%$261.65
$91.58Nidec-US Motors 5642 Motor
The Nidec-US Motors 5642 Blower Motor is a heavy-duty 3/4 HP replacement motor designed for direct-drive furnace and air handler applications. This multi-voltage HVAC motor operates on 115V or 208-230V, providing field flexibility for technicians managing various service calls. Built on a NEMA 48 frame, it features an Open Air Over (OAO) enclosure to facilitate maximum heat dissipation during continuous operation. With a rated speed of 1075 RPM and a high-torque 1-phase design, this motor maintains reliable static pressure performance. The 1/2-inch diameter by 4-inch long shaft is suited for standard blower wheels, while the belly band mount configuration ensures compatibility with multiple housing brackets. Designed for 50/60 Hz systems, this PSC blower motor provides the amperage stability (9.3A at 115V) required for modern high-efficiency residential and light commercial equipment.
Key Benefits for Contractors- Universal Voltage Compatibility: Supports 115/208-230V configurations, reducing the need to carry multiple single-voltage motors on service trucks.
- Enhanced Thermal Regulation: The Open Air Over (OAO) design utilizes the system's airflow to prevent internal winding overheating.
- Standardized Fit: 48-frame diameter and belly band mounting provide a drop-in replacement for many OEM direct-drive blower assemblies.
- Reversible Rotation: Features quick-connect leads for easy rotation changes in the field to match specific blower wheel requirements.
- Robust Construction: Engineered by US Motors for consistency in high-cycle heating and cooling applications.
What is the frame size and mounting for the 5642 motor?
This is a 48 frame motor specifically designed for belly band mounting, which allows the motor to be secured within the blower housing via a circular clamp.
Can this motor replace a 1/2 HP or 1/3 HP motor?
While you can often upsize horsepower, you must ensure the 9.3 Amp rating does not exceed the capacity of your control board or capacitor, and that the physical dimensions and 1075 RPM match the original specifications.
Does this motor include a capacitor?
This permanent split capacitor (PSC) motor requires a specific run capacitor (typically 10MFD/370V, though you should verify the label) for proper phasing and torque; capacitors are generally sold separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
