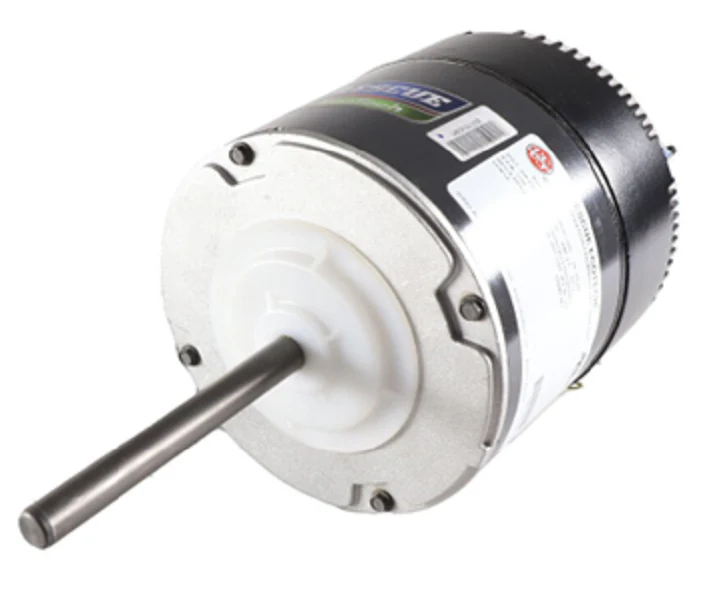

Nidec-US Motors 5563EOR Motor
The Nidec-US Motors 5563EOR is a high-performance 1/3 – 1/5 HP ECM motor specifically engineered for commercial refrigeration evaporator applications. Operating on 208-230V, this electronically commutated motor provides a significant efficiency upgrade over standard shaded pole or PSC motors, delivering a consistent 1,145 RPM. Its Totally Enclosed Air Over (TEAO) enclosure and IP54-rated protection ensure the internal components are shielded from the moisture and debris common in walk-in coolers and freezers. With ball bearings on both the shaft and lead ends, the 5563EOR is built for continuous duty cycle demands, while the 10-pole design allows for precise airflow management.
For technicians performing field replacements, this Rescue EcoTech compatible motor features a belly band mounting configuration and includes the Lyall plug M055ESL1240012B for seamless integration. The electronic thermal protection eliminates the need for external overloads, providing a robust failsafe against stator overheating. Designed with a 5.5-inch stator diameter and Class B insulation, this motor handles ambient temperatures up to 60°C, making it a reliable drop-in solution for maintaining critical temperature setpoints in commercial cooling systems.
Key Contractor Benefits:
- High-Efficiency ECM Technology: Reduces energy consumption and total cost of ownership compared to traditional induction motors.
- Drop-In Compatibility: Ideally suited for systems utilizing Nidec 5563EOR or RESCUE EcoTech refrigeration evaporator fans.
- Durable Construction: Features dual ball bearings and a TEAO enclosure to withstand harsh evaporator environments.
- Advanced Protection: Integrated electronic thermal management prevents motor failure due to locked rotors or voltage fluctuations.
- Optimized Performance: 10-pole design ensures quiet operation and precise thermal load response.
Common Technical Questions:
Is the rotation reversible on the 5563EOR?
This model is configured for Counterclockwise (CCW) rotation from the lead end perspective. Always verify the rotation requirements of the evaporator fan blade before installation.
Can this motor replace a standard 1/3 HP PSC motor?
Yes, as an ECM motor, it can serve as a direct high-efficiency replacement for 1/3 to 1/5 HP fractional horsepower applications, provided the mounting and voltage specifications match.
What is the purpose of the Lyall plug?
The included Lyall plug (M055ESL1240012B) facilitates a quick-connect electrical interface, common in many OEM refrigeration cabinets for faster servicing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
