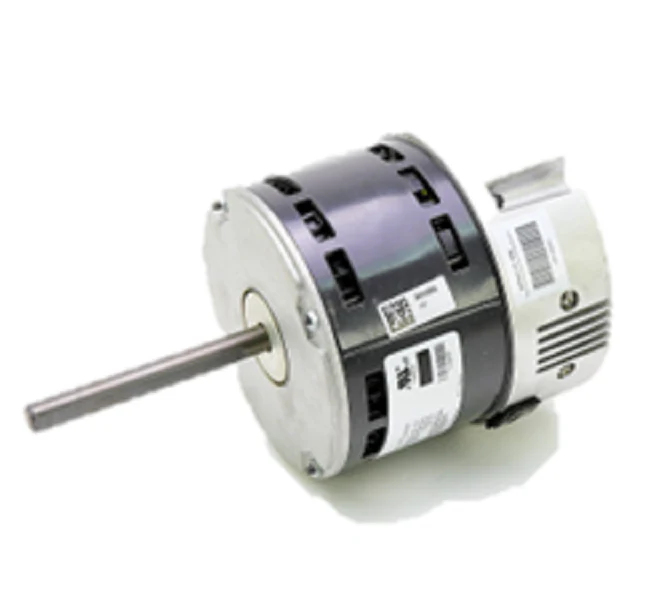

Nidec-US Motors 5532ET Motor
The Nidec-US Motors 5532ET is a high-efficiency RESCUE EcoTech ECM motor designed as a drop-in replacement for standard PSC direct drive blower motors in residential and commercial furnaces or air handlers. Operating on a dual-voltage range of 115/208-230Vac, this 1/2-1/4 HP unit provides significant energy savings by utilizing electronically commutated motor technology. Designed with a 48Y NEMA frame size and an Open Air Over (OAO) enclosure, it is engineered for continuous duty in airflow applications. The 5532ET features a 1/2" diameter shaft, reversible rotation, and ball bearings for high-temperature durability. For field flexibility, this variable speed motor requires no capacitor and includes 36-inch leads, making it an ideal choice for contractors looking to upgrade existing HVAC blower motors to a high-efficiency ECM platform without complex rewiring or mounting adjustments.
Key Benefits- Universal Compatibility: Serves as a direct replacement for 1/2 HP and 1/4 HP PSC motors, simplifying truck stock for service calls.
- Energy Efficiency: Provides the performance of an ECM motor with a simplified multi-speed interface to reduce operational costs.
- Enhanced Durability: Features ball bearing construction and electronic protection to handle high-demand HVACR environments.
- Flexible Installation: Supports reversible rotation (CW/CCW) and belly band mounting for broad application across various furnace brands.
- No Capacitor Needed: Integrated brushless permanent magnet technology eliminates the need for external run capacitors.
Is the 5532ET a direct replacement for my existing PSC blower motor?
Yes, the 5532ET is specifically designed to replace 48-frame PSC motors. It matches standard dimensions and utilizes existing speed taps to minimize conversion time.
Can this motor handle both 115V and 230V systems?
This dual voltage motor is compatible with 115Vac and 208-230Vac single-phase power supplies, making it versatile for both gas furnaces and air handlers.
What speeds are available with this motor?
The motor features variable speed capabilities and is typically programmed with up to 5 discrete speed taps to match the CFM requirements of the original equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
