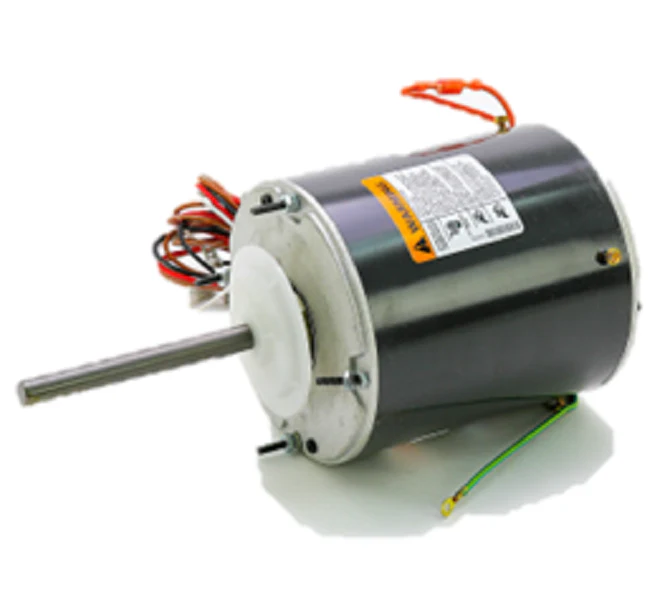

Nidec-US Motors 5482H Motor
The Nidec US Motors 5482H is a high-performance multi-horsepower condenser fan motor engineered for service replacement versatility. This Rescue permanent split capacitor motor features a horsepower range spanning from 3/4 HP to 1/4 HP, allowing technicians to carry one motor for a wide variety of units. Operating at 208-230V and 1075 RPM, this 48Y NEMA frame motor utilizes a Totally Enclosed Air Over (TEAO) enclosure to prevent debris ingress and ensure long-term thermal management. The ball bearing design supports all-angle mounting, making it compatible with or without a fan shroud. With reversible rotation accomplished through simple lead swapping and lead-end stud mounting, this unit seamlessly replaces standard HVAC condenser fan motors in residential and light commercial equipment. The 1/2-inch diameter shaft and 2-speed capability provide precise airflow control for systems requiring variable load management.
Key Benefits
- Versatile Multi-HP Output: Simplifies inventory by covering 3/4, 1/2, 1/3, and 1/4 HP applications.
- All-Angle Mounting: Dual-shielded ball bearings permit horizontal or vertical shaft-down/shaft-up installation.
- Simplified Reversing: Quick-connect terminals allow for immediate rotation changes in the field.
- Extended Lead Lengths: Features 48-inch leads for easier routing in larger cabinet configurations.
- Standardized Frame Size: The 5.6-inch diameter 48Y frame ensures fitment in most replacement motor brackets.
Common Questions
What capacitor is required for the US Motors 5482H?
The required capacitor depends on the horsepower tap utilized. Always check the motor nameplate or technical data sheet to ensure the correct microfarad (MFD) rating is used for the specific HP setting.
Can this motor be used in rain-exposed environments?
Yes, the TEAO enclosure is designed for the high-moisture conditions typical of outdoor condensing units, though proper orientation of drain plugs is required to prevent water accumulation.
Does the 5482H support low-speed operation?
This is a 2-speed motor, providing an extra tap for systems that require lower RPM to achieve specific static pressure or sound requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
