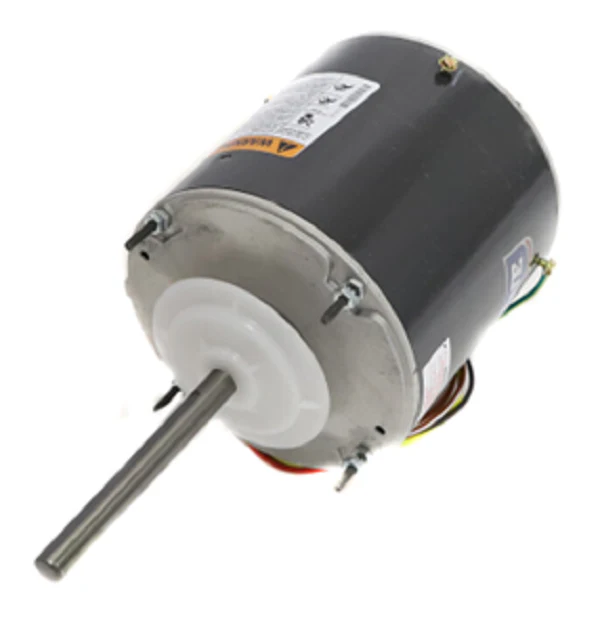

Nidec-US Motors 5480H Motor
The Nidec US Motors 5480H is a high-efficiency Rescue condenser fan motor designed for demanding commercial HVACR applications. This versatile multi-horsepower motor operates between 1/2 HP and 1/6 HP, providing a wide range of replacement capability at 1075 RPM. Engineered for 460V single-phase systems, it utilizes a 48Y frame with an extended thru-bolt design for secure mounting. The 48-inch leads and reversible rotation simplify installation in the field, reducing the need to carry multiple single-application motors. Built with all-angle mounting capabilities and high-quality ball bearings, this totally enclosed air over (TEAO) motor ensures reliable heat dissipation and protection against moisture and debris. Its 60 Hz operation and thermal overload protection make it a standard choice for technicians focusing on direct drive condenser fan replacement and HVAC motor efficiency.
- Multi-HP Versatility: Replaces 1/2, 1/3, 1/4, 1/5, and 1/6 HP ratings with a single unit.
- Simplified Wiring: Features extra-long 48-inch leads and easy rotation reversal for fast field swaps.
- Durable Construction: TEAO enclosure and all-angle ball bearings handle harsh outdoor environments.
- Precise Fit: Standard 48Y frame with 1/2-inch diameter shaft ensures compatibility with most OEM fans.
Common Questions
Is the Nidec 5480H compatible with 230V systems?
No, this specific model is engineered strictly for 460V single-phase power. Always verify the voltage at the contactor before installation.
How do I change the rotation of this motor?
The 5480H features a simple reversing plug logic, allowing you to switch between clockwise and counter-clockwise rotation to match the fan blade pitch.
Can I mount this motor vertically?
Yes, the all-angle mounting design and reinforced ball bearings allow for shaft-up, shaft-down, or horizontal installation orientations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $308.11
-65%$308.11
$107.84Nidec-US Motors 5480H Motor
The Nidec US Motors 5480H is a high-efficiency Rescue condenser fan motor designed for demanding commercial HVACR applications. This versatile multi-horsepower motor operates between 1/2 HP and 1/6 HP, providing a wide range of replacement capability at 1075 RPM. Engineered for 460V single-phase systems, it utilizes a 48Y frame with an extended thru-bolt design for secure mounting. The 48-inch leads and reversible rotation simplify installation in the field, reducing the need to carry multiple single-application motors. Built with all-angle mounting capabilities and high-quality ball bearings, this totally enclosed air over (TEAO) motor ensures reliable heat dissipation and protection against moisture and debris. Its 60 Hz operation and thermal overload protection make it a standard choice for technicians focusing on direct drive condenser fan replacement and HVAC motor efficiency.
- Multi-HP Versatility: Replaces 1/2, 1/3, 1/4, 1/5, and 1/6 HP ratings with a single unit.
- Simplified Wiring: Features extra-long 48-inch leads and easy rotation reversal for fast field swaps.
- Durable Construction: TEAO enclosure and all-angle ball bearings handle harsh outdoor environments.
- Precise Fit: Standard 48Y frame with 1/2-inch diameter shaft ensures compatibility with most OEM fans.
Common Questions
Is the Nidec 5480H compatible with 230V systems?
No, this specific model is engineered strictly for 460V single-phase power. Always verify the voltage at the contactor before installation.
How do I change the rotation of this motor?
The 5480H features a simple reversing plug logic, allowing you to switch between clockwise and counter-clockwise rotation to match the fan blade pitch.
Can I mount this motor vertically?
Yes, the all-angle mounting design and reinforced ball bearings allow for shaft-up, shaft-down, or horizontal installation orientations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
