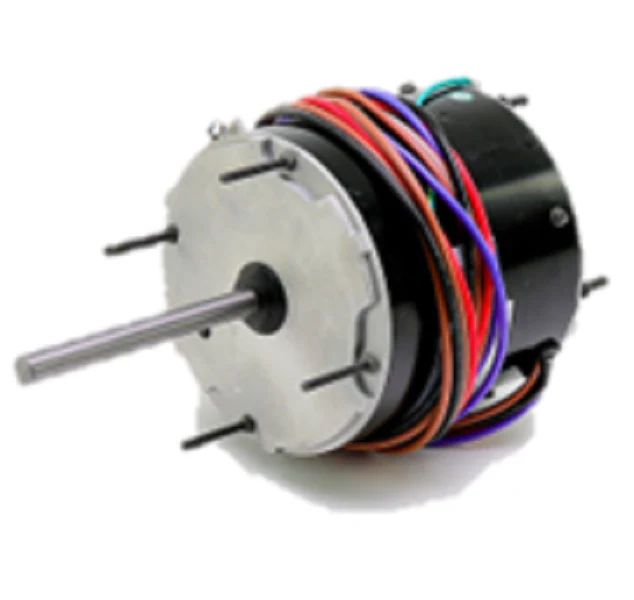

Nidec-US Motors 5465 Motor
The Nidec-US Motors 5465 Motor is a high-performance multi-horsepower condenser fan motor designed for professional service calls where versatility is a requirement. This Rescue Permanent Split Capacitor motor serves as a drop-in replacement for a wide range of residential and commercial applications, covering 1/2 HP, 1/3 HP, 1/4 HP, and 1/5 HP ratings at 208-230V. Operating at a standard 1075 RPM with 2-speed capability, this TEAO (Totally Enclosed Air Over) motor is built to withstand high-ambient conditions up to 140°F. The 48Y NEMA frame design features extended mounting studs and lead end mounting holes specifically compatible with Rheem, Ruud, and Trane units. With reversible rotation and a 1/2-inch diameter shaft, this ball bearing motor ensures a quiet, reliable HVAC motor replacement that handles the static pressure demands of modern outdoor units. Techs can rely on the automatic reset thermal overload protector for circuit safety and the 48-inch leads for flexible wiring in crowded cabinets.
Key Benefits:- Multi-HP Versatility: Replaces four common horsepower ratings (1/2 to 1/5 HP) to reduce truck stock and simplify condenser fan motor repair.
- Universal Mounting: Features extended studs and specialized mounting holes for seamless integration with OEM brands like Rheem and Trane.
- Durability in High Heat: Rated for 60°C (140°F) ambient temperatures with ball bearings for long-term reliability in harsh outdoor environments.
- Reversible Rotation: Easily switch between CW and CCW rotation by swapping the lead connectors, ensuring compatibility with any fan blade pitch.
- Quiet TEAO Design: The totally enclosed air over enclosure protects internal windings from dust and moisture while maintaining efficient cooling.
What capacitor is required for the US Motors 5465?
This motor typically requires a 10 MFD / 370V or 440V run capacitor. Always check the nameplate once wired to the specific horsepower setting to confirm the required capacitance.
How do I change the rotation on this motor?
The motor features a simple reversing plug or lead set. By disconnecting and swapping the orientation of the reversing leads according to the wiring diagram, you can achieve either clockwise or counter-clockwise rotation.
Does this motor include the fan blade?
No, this is the motor only. You must reuse the existing fan blade or purchase a new one that matches the 1/2" shaft size and the specific pitch required for your unit's airflow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $171.14
-65%$171.14
$59.90Nidec-US Motors 5465 Motor
The Nidec-US Motors 5465 Motor is a high-performance multi-horsepower condenser fan motor designed for professional service calls where versatility is a requirement. This Rescue Permanent Split Capacitor motor serves as a drop-in replacement for a wide range of residential and commercial applications, covering 1/2 HP, 1/3 HP, 1/4 HP, and 1/5 HP ratings at 208-230V. Operating at a standard 1075 RPM with 2-speed capability, this TEAO (Totally Enclosed Air Over) motor is built to withstand high-ambient conditions up to 140°F. The 48Y NEMA frame design features extended mounting studs and lead end mounting holes specifically compatible with Rheem, Ruud, and Trane units. With reversible rotation and a 1/2-inch diameter shaft, this ball bearing motor ensures a quiet, reliable HVAC motor replacement that handles the static pressure demands of modern outdoor units. Techs can rely on the automatic reset thermal overload protector for circuit safety and the 48-inch leads for flexible wiring in crowded cabinets.
Key Benefits:- Multi-HP Versatility: Replaces four common horsepower ratings (1/2 to 1/5 HP) to reduce truck stock and simplify condenser fan motor repair.
- Universal Mounting: Features extended studs and specialized mounting holes for seamless integration with OEM brands like Rheem and Trane.
- Durability in High Heat: Rated for 60°C (140°F) ambient temperatures with ball bearings for long-term reliability in harsh outdoor environments.
- Reversible Rotation: Easily switch between CW and CCW rotation by swapping the lead connectors, ensuring compatibility with any fan blade pitch.
- Quiet TEAO Design: The totally enclosed air over enclosure protects internal windings from dust and moisture while maintaining efficient cooling.
What capacitor is required for the US Motors 5465?
This motor typically requires a 10 MFD / 370V or 440V run capacitor. Always check the nameplate once wired to the specific horsepower setting to confirm the required capacitance.
How do I change the rotation on this motor?
The motor features a simple reversing plug or lead set. By disconnecting and swapping the orientation of the reversing leads according to the wiring diagram, you can achieve either clockwise or counter-clockwise rotation.
Does this motor include the fan blade?
No, this is the motor only. You must reuse the existing fan blade or purchase a new one that matches the 1/2" shaft size and the specific pitch required for your unit's airflow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
