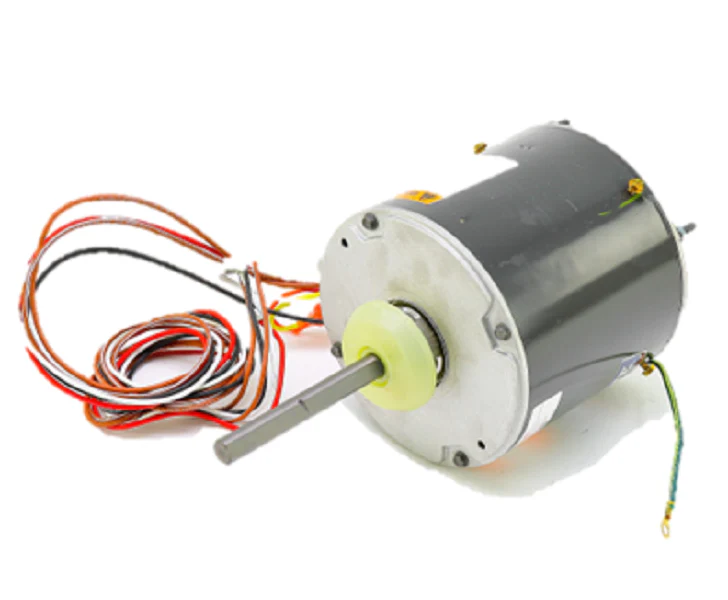

Nidec-US Motors 5464H Motor
The Nidec NEMA 48 Frame 5464H is a heavy-duty, multi-horsepower condenser fan motor designed for professional HVACR contractors who need a reliable, universal solution for field replacements. Operating at 208-230V and a nominal 825 RPM, this RESCUE Mojave series motor provides high-ambient performance rated up to 158°F (70°C), making it ideal for rooftop units and demanding commercial environments. As a multi-HP motor, it can be tapped to replace both 1/3 HP and 1/6 HP applications, effectively reducing truck stock and ensuring you have the right part for the job.
This TEAO (Totally Enclosed Air Over) motor features a permanent split capacitor (PSC) design with dual speeds and reversible rotation for maximum versatility. Built with ball bearings and an automatic reset thermal overload protector, the US Motors 5464H is engineered for continuous duty. The unit includes 48-inch leads and extended mounting studs to simplify installation in cramped housing. Its core is treated with specialized corrosion protection to maintain operational integrity in high-humidity conditions, ensuring the 5.6-inch diameter frame stands up to rigorous outdoor use.
Key Benefits:- Multi-Horsepower Versatility: Replaces 1/3 HP and 1/6 HP motors with a single unit using specific speed taps.
- High Ambient Rating: Proven 70°C (158°F) design ensures condensing unit performance during extreme heat waves.
- Universal Mounting: Features extended studs and lead-end mounting holes compatible with Rheem and Trane configurations.
- All-Weather Protection: Rated TEAO with drain holes at both ends and a corrosion-resistant rotor for outdoor longevity.
- Simplified Wiring: Includes a clear wiring diagram and 48-inch leads to accommodate various direct drive blower and fan setups.
What capacitor is required for this motor?
This motor is designed for use with a 7.5 MFD / 370V run capacitor to ensure proper starting torque and efficiency.
Can I change the rotation direction in the field?
Yes, the Nidec 5464H features reversible rotation by switching the lead connections as indicated on the nameplate diagram.
Is this motor suitable for use in extreme heat?
This Mojave series motor is specifically engineered for high-ambient temperatures up to 70°C, significantly outperforming standard 40°C or 60°C rated motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $186.07
-65%$186.07
$65.12Nidec-US Motors 5464H Motor
