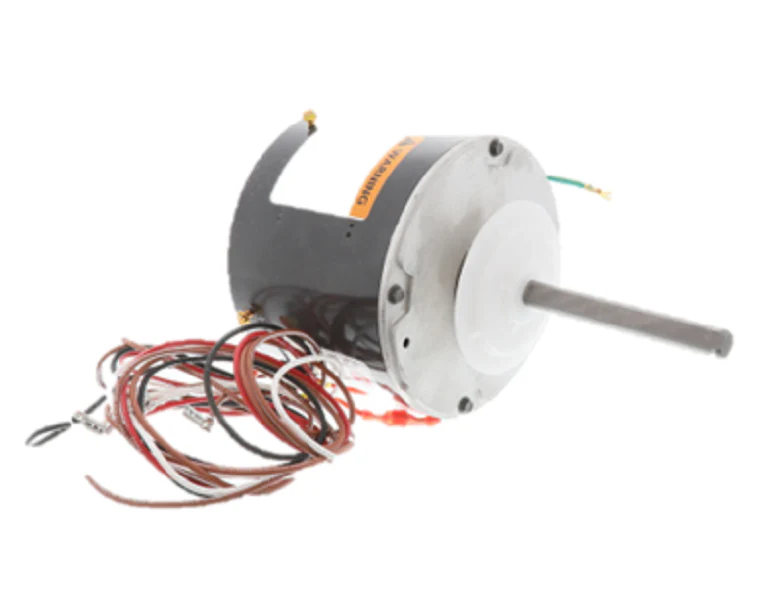

Nidec-US Motors 5462H Motor
The Nidec-US Motors 5462H is a high-versatility Rescue Permanent Split Capacitor motor designed for demanding condenser fan motor replacements. Engineered with a multi-horsepower design, this 48 NEMA frame motor covers 1/3, 1/4, 1/5, and 1/6 HP applications at 1075 RPM, allowing contractors to reduce truck stock. Operating on a 208-230V single-phase power supply, it features a Totally Enclosed Air Over (TEAO) enclosure and robust ball bearings for high-ambient performance and durability in outdoor units. The 5462H includes a 1/2" diameter shaft with a 5" length, extended mounting studs, and reversible rotation via a simple plug-and-play lead connection. Designed for reliability, this direct drive motor handles 2.6 to 1.8 Amps depending on the loaded speed and horsepower setting, ensuring precise airflow management in residential and light commercial HVAC systems.
Key Benefits
- Multi-HP Versatility: Replaces four standard motor ratings (1/3, 1/4, 1/5, 1/6 HP), simplifying inventory management for HVAC service calls.
- All-Angle Mounting: Equipped with dual-position stud mounts and reversible rotation for compatibility with most condenser fan orientations.
- TEAO Protection: The Totally Enclosed Air Over design prevents dust and debris from entering the motor windings, extending service life in harsh environments.
- High Reliability: Features double-sealed ball bearings for low-friction operation and enhanced thermal stability compared to sleeve-bearing alternatives.
Common Questions
What capacitor is required for the Nidec 5462H?
This motor typically requires a 5 MFD/370V or 7.5 MFD/370V capacitor depending on the horsepower tap being utilized; always verify the rating on the motor nameplate during installation.
How do I change the rotation of this motor?
The 5462H features a reversible rotation design; simply swap the two connectors located on the side of the lead housing to switch between clockwise and counter-clockwise rotation.
Can this motor be used in horizontal or vertical applications?
Yes, the ball bearing system allows the motor to be mounted in any orientation—shaft up, shaft down, or horizontal—without compromising internal components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $153.08
-65%$153.08
$53.58Nidec-US Motors 5462H Motor
The Nidec-US Motors 5462H is a high-versatility Rescue Permanent Split Capacitor motor designed for demanding condenser fan motor replacements. Engineered with a multi-horsepower design, this 48 NEMA frame motor covers 1/3, 1/4, 1/5, and 1/6 HP applications at 1075 RPM, allowing contractors to reduce truck stock. Operating on a 208-230V single-phase power supply, it features a Totally Enclosed Air Over (TEAO) enclosure and robust ball bearings for high-ambient performance and durability in outdoor units. The 5462H includes a 1/2" diameter shaft with a 5" length, extended mounting studs, and reversible rotation via a simple plug-and-play lead connection. Designed for reliability, this direct drive motor handles 2.6 to 1.8 Amps depending on the loaded speed and horsepower setting, ensuring precise airflow management in residential and light commercial HVAC systems.
Key Benefits
- Multi-HP Versatility: Replaces four standard motor ratings (1/3, 1/4, 1/5, 1/6 HP), simplifying inventory management for HVAC service calls.
- All-Angle Mounting: Equipped with dual-position stud mounts and reversible rotation for compatibility with most condenser fan orientations.
- TEAO Protection: The Totally Enclosed Air Over design prevents dust and debris from entering the motor windings, extending service life in harsh environments.
- High Reliability: Features double-sealed ball bearings for low-friction operation and enhanced thermal stability compared to sleeve-bearing alternatives.
Common Questions
What capacitor is required for the Nidec 5462H?
This motor typically requires a 5 MFD/370V or 7.5 MFD/370V capacitor depending on the horsepower tap being utilized; always verify the rating on the motor nameplate during installation.
How do I change the rotation of this motor?
The 5462H features a reversible rotation design; simply swap the two connectors located on the side of the lead housing to switch between clockwise and counter-clockwise rotation.
Can this motor be used in horizontal or vertical applications?
Yes, the ball bearing system allows the motor to be mounted in any orientation—shaft up, shaft down, or horizontal—without compromising internal components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
