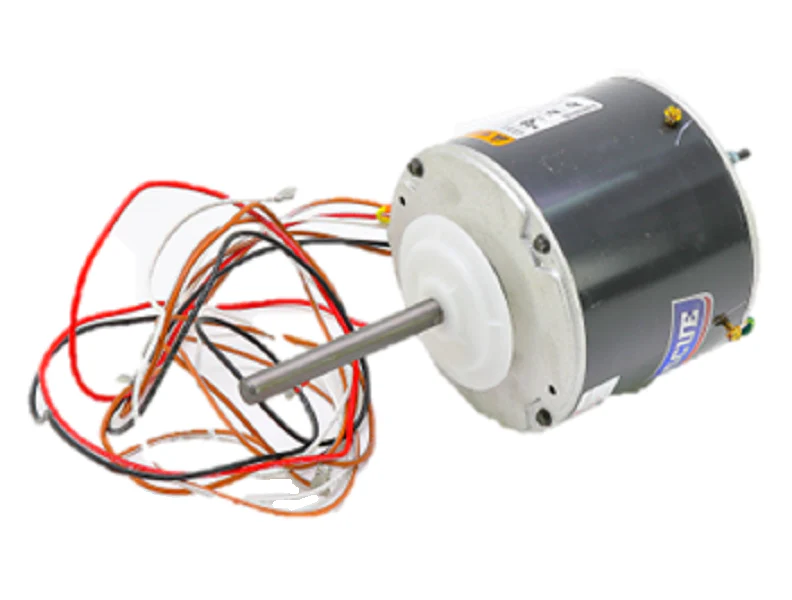

Nidec-US Motors 5462 Motor
The Nidec-US Motors 5462 is a professional-grade Rescue Permanent Split Capacitor Motor designed for high-performance service in residential and commercial condenser fan motor applications. This versatile unit features a multi-horsepower design, covering 1/3, 1/4, 1/5, and 1/6 HP requirements, making it an essential truck-stock component for immediate field HVAC motor replacement. Operating at 1075 RPM and 208-230V, this 2-speed motor is built with a 48 NEMA frame and an Open Air Over (OAO) enclosure to ensure optimal thermal management during continuous duty. The US Motors 5462 is a direct replacement for 3465, providing a seamless retrofit for technicians. Its reversible rotation and ball bearing construction offer flexibility and durability across various mounting configurations, including stud mounts for Rheem or Trane units. With 48-inch leads and a 1/2-inch diameter shaft, this condenser motor simplifies installation in challenging environments.
Key Benefits
- Multi-HP Versatility: Consolidates inventory by covering applications from 1/6 HP up to 1/3 HP.
- Direct Cross-Reference: Specifically engineered as the 5462 direct replacement for 3465 to eliminate compatibility guesswork.
- Enhanced Durability: Equipped with industrial ball bearings and an automatic reset thermal overload protector for high-ambient reliability.
- Field Flexibility: Features reversible rotation and extended mounting studs for quick adaptation to various condenser unit housings.
- Efficiency: High-efficiency PSC design reduces amperage draw across both speed taps.
Common Questions
What capacitor is required for the US Motors 5462?
This motor typically requires a 5 MFD or 7.5 MFD 370V run capacitor, depending on the horsepower tap selected during installation.
How do I change the rotation on this Rescue motor?
The rotation is easily reversible by swapping the dedicated reversing leads located in the motor's wiring harness as per the diagram on the nameplate.
Can this motor be mounted at any angle?
Yes, the ball bearing system and all-angle thrust design allow the motor to be installed in shaft-up, shaft-down, or horizontal positions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
