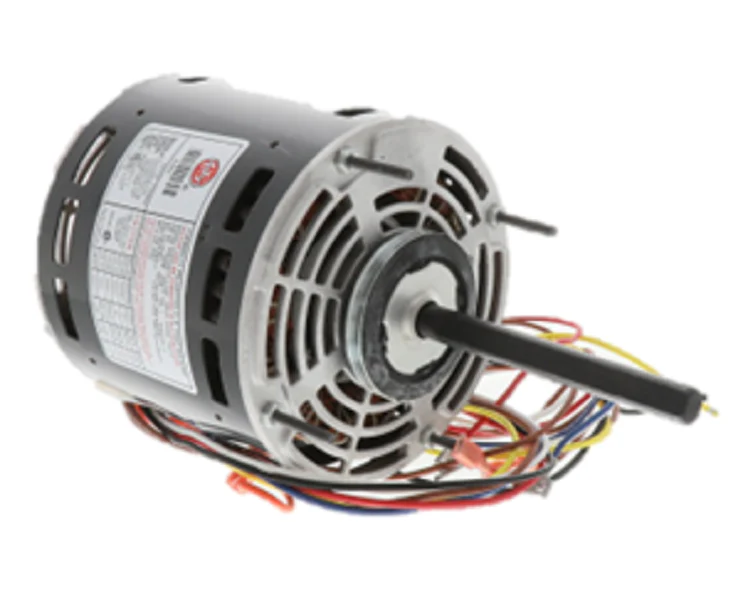

Nidec-US Motors 5461 Motor
The Nidec-US Motors 5461 is a multi-horsepower Rescue Permanent Split Capacitor Motor designed for high-demand furnace and air handler blower applications. Engineered as a versatile direct drive blower motor, this unit covers a range of ratings from 1/2 HP down to 1/6 HP at 1075 RPM, effectively reducing the need for extensive truck stock. Operating on 208-230V single-phase power, this 48 NEMA Frame motor features an Open Air Over (OAO) enclosure and self-aligning sleeve bearings for reliable thermal dissipation and quiet operation. The reversible rotation is easily achieved via lead connection, making it compatible with various OEM fan configurations. With a standard 1/2-inch shaft and options for ring or stud mounting, this 4-speed motor provides a flexible solution for contractors needing immediate residential or light commercial replacements.
- Multi-Horsepower Versatility: Replaces 1/2, 1/3, 1/4, 1/5, and 1/6 HP ratings, simplifying inventory for on-site service calls.
- Broad Compatibility: Features both 2.5-inch diameter resilient rings and extended thru-bolts for HVAC motor mounting flexibility.
- High Starting Torque: The PSC design ensures consistent performance and efficient operation under varying static pressures.
- Reversible Rotation: Quick-connect leads allow for easy clockwise or counter-clockwise field adjustments.
Common Technical Questions
Can this motor replace a single-speed blower motor?
Yes, the US Motors 5461 can replace a single-speed motor; simply select the speed lead that matches your required CFM and secure the unused leads properly.
What capacitor is required for this motor?
This motor typically requires a 10 MFD / 370V capacitor, though you should always verify the specific rating on the motor nameplate during installation.
Is this motor suitable for belt-drive applications?
No, this is a direct drive motor designed for the fan blade or blower wheel to be mounted directly onto the 1/2" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $145.95
-65%$145.95
$51.08Nidec-US Motors 5461 Motor
The Nidec-US Motors 5461 is a multi-horsepower Rescue Permanent Split Capacitor Motor designed for high-demand furnace and air handler blower applications. Engineered as a versatile direct drive blower motor, this unit covers a range of ratings from 1/2 HP down to 1/6 HP at 1075 RPM, effectively reducing the need for extensive truck stock. Operating on 208-230V single-phase power, this 48 NEMA Frame motor features an Open Air Over (OAO) enclosure and self-aligning sleeve bearings for reliable thermal dissipation and quiet operation. The reversible rotation is easily achieved via lead connection, making it compatible with various OEM fan configurations. With a standard 1/2-inch shaft and options for ring or stud mounting, this 4-speed motor provides a flexible solution for contractors needing immediate residential or light commercial replacements.
- Multi-Horsepower Versatility: Replaces 1/2, 1/3, 1/4, 1/5, and 1/6 HP ratings, simplifying inventory for on-site service calls.
- Broad Compatibility: Features both 2.5-inch diameter resilient rings and extended thru-bolts for HVAC motor mounting flexibility.
- High Starting Torque: The PSC design ensures consistent performance and efficient operation under varying static pressures.
- Reversible Rotation: Quick-connect leads allow for easy clockwise or counter-clockwise field adjustments.
Common Technical Questions
Can this motor replace a single-speed blower motor?
Yes, the US Motors 5461 can replace a single-speed motor; simply select the speed lead that matches your required CFM and secure the unused leads properly.
What capacitor is required for this motor?
This motor typically requires a 10 MFD / 370V capacitor, though you should always verify the specific rating on the motor nameplate during installation.
Is this motor suitable for belt-drive applications?
No, this is a direct drive motor designed for the fan blade or blower wheel to be mounted directly onto the 1/2" shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
