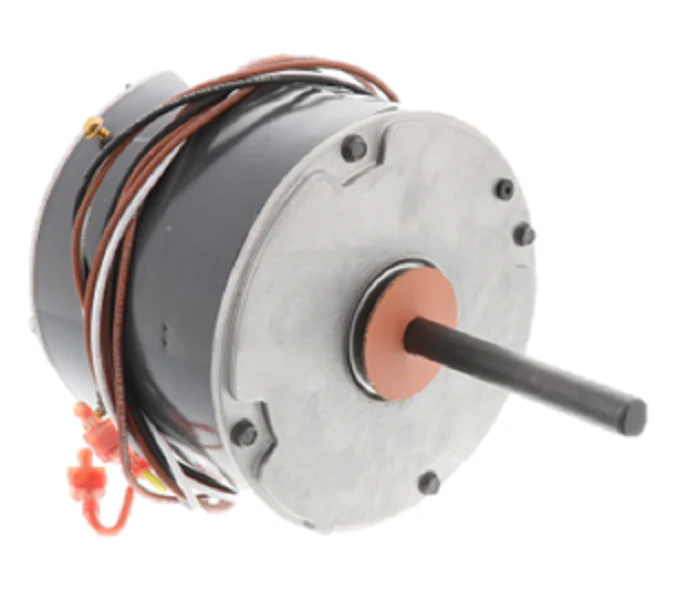

Nidec-US Motors 5457 Motor
The Nidec-US Motors 5457 Motor is a professional-grade 1/6 HP condenser fan motor engineered for high-static outdoor environments. Operating at 825 RPM on a 208-230V single-phase power supply, this 8-pole PSC motor is a common replacement for Rheem and other major OEM residential condensing units. Built with a 48Y NEMA frame and a totally enclosed air over (TEAO) enclosure, this unit is designed to withstand moisture and debris common in exterior HVAC applications. The 1.2 Amp draw and Class B insulation rating ensure stable thermal performance under continuous duty cycles.
This HVAC substitution motor features a versatile bracket or stud mount configuration and a standard 1/2" diameter shaft. With reversible rotation capabilities and self-aligning sleeve bearings, the 5457 provides technicians with a reliable solution for restoring system airflow. The integration of automatic thermal overload protection prevents winding failure during voltage fluctuations or restricted airflow conditions, making it a staple for any service truck specializing in condenser motor replacement.
Key Benefits:- Universal Compatibility: Fits various OEM configurations with its reversible rotation and multiple mounting options (bracket or stud).
- Enhanced Durability: The TEAO enclosure protects internal components from environmental exposure, extending the lifecycle in harsh outdoor conditions.
- Quiet Operation: Precision-engineered self-aligning sleeve bearings minimize vibration and acoustic output.
- Efficient Performance: Optimized 8-pole design maintains consistent torque at low 825 RPM speeds for improved heat exchange.
- What capacitor is required for this motor? This motor typically utilizes a 5.0 MFD or 7.5 MFD / 370V run capacitor; always verify the rating on the motor nameplate during installation.
- Can this motor be mounted in any orientation? Yes, the all-angle thrust system in the bearings allows for shaft-up, shaft-down, or horizontal mounting.
- Is this compatible with Rheem units? Yes, the 5457 is a frequently specified aftermarket condenser fan motor for many Rheem and Ruud outdoor units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
