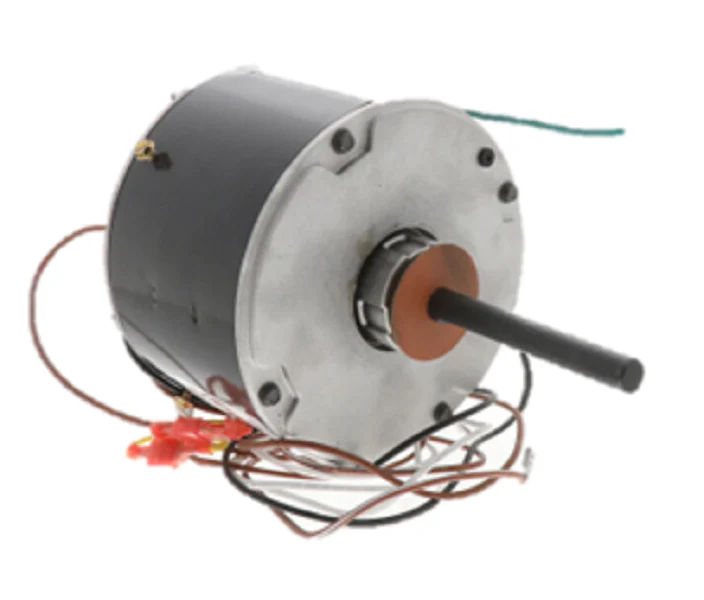

Nidec-US Motors 5454 Motor
The Nidec US Motors 5454 is a professional-grade PSC condenser fan motor engineered for high-demand residential and commercial outdoor units. Operating at 1/5 HP and 1075 RPM, this 208-230V single phase motor features a totally enclosed air over (TEAO) enclosure, making it ideal for the high-static environments found in condensing sections. Its 48Y NEMA frame design and reversible rotation capability ensure extensive HVAC motor compatibility, specifically serving as a standard aftermarket replacement for Rheem models like the 51-20672-01 series. The self-aligning sleeve bearing system includes an all-angle thrust design to handle vertical or horizontal mounting via extended studs. Utilizing a permanent split capacitor design, this motor requires a 3 MFD 370V capacitor for optimal operation and features an automatic reset thermal overload protector to manage heat during continuous duty cycles.
Key Benefits- High Ambient Resilience: Rated for up to 140°F (60°C) ambient temperatures to prevent premature failure during peak summer loads.
- Versatile Mounting: Four extended studs on both ends and a 1/2" x 3.7" shaft allow for secure installation across various branded cabinets.
- TEAO Construction: The totally enclosed air over enclosure protects internal windings from dust and moisture while utilizing system airflow for cooling.
- Rotation Flexibility: Easily reversible rotation ensures correct airflow direction regardless of the fan blade pitch.
What capacitor is required for the US Motors 5454?
This motor requires a 3 MFD / 370 VAC capacitor. Using an incorrectly rated capacitor can lead to startup failure or winding damage.
Can this motor replace a Rheem 51-20673-01?
Yes, the 5454 is a direct condenser fan motor replacement for several Rheem parts, including the 51-20672 and 51-23053 series, due to the matching 48Y frame and mounting holes.
How do I change the direction of rotation?
Rotation is reversed by swapping the lead connections as specified on the motor’s wiring diagram, typically found on the terminal box or housing label.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $165.37
-65%$165.37
$57.88Nidec-US Motors 5454 Motor
The Nidec US Motors 5454 is a professional-grade PSC condenser fan motor engineered for high-demand residential and commercial outdoor units. Operating at 1/5 HP and 1075 RPM, this 208-230V single phase motor features a totally enclosed air over (TEAO) enclosure, making it ideal for the high-static environments found in condensing sections. Its 48Y NEMA frame design and reversible rotation capability ensure extensive HVAC motor compatibility, specifically serving as a standard aftermarket replacement for Rheem models like the 51-20672-01 series. The self-aligning sleeve bearing system includes an all-angle thrust design to handle vertical or horizontal mounting via extended studs. Utilizing a permanent split capacitor design, this motor requires a 3 MFD 370V capacitor for optimal operation and features an automatic reset thermal overload protector to manage heat during continuous duty cycles.
Key Benefits- High Ambient Resilience: Rated for up to 140°F (60°C) ambient temperatures to prevent premature failure during peak summer loads.
- Versatile Mounting: Four extended studs on both ends and a 1/2" x 3.7" shaft allow for secure installation across various branded cabinets.
- TEAO Construction: The totally enclosed air over enclosure protects internal windings from dust and moisture while utilizing system airflow for cooling.
- Rotation Flexibility: Easily reversible rotation ensures correct airflow direction regardless of the fan blade pitch.
What capacitor is required for the US Motors 5454?
This motor requires a 3 MFD / 370 VAC capacitor. Using an incorrectly rated capacitor can lead to startup failure or winding damage.
Can this motor replace a Rheem 51-20673-01?
Yes, the 5454 is a direct condenser fan motor replacement for several Rheem parts, including the 51-20672 and 51-23053 series, due to the matching 48Y frame and mounting holes.
How do I change the direction of rotation?
Rotation is reversed by swapping the lead connections as specified on the motor’s wiring diagram, typically found on the terminal box or housing label.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
