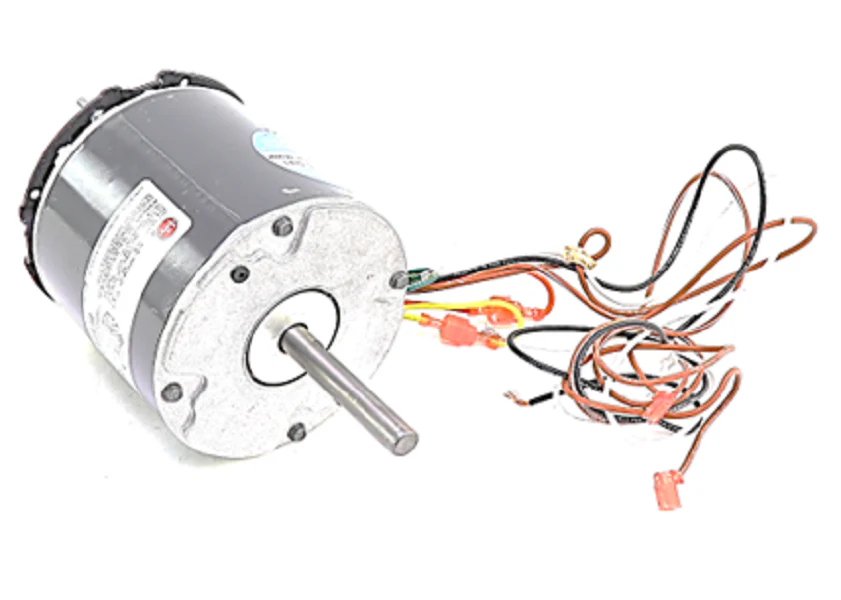

Nidec-US Motors 5442H Motor
For mid-sized condenser applications requiring reliable performance in high-ambient conditions, the Nidec-US Motors 5442H Motor is a high-spec condenser fan motor designed for longevity. Built on a 42Y frame, this totally enclosed air over (TEAO) unit operates at a multi-horsepower rating of 1/4-1/8 HP, making it a versatile drop-in for 208-230V single-phase HVACR systems. A key feature for contractors is the 1625 RPM operating speed and automatic reset thermal protection, which prevents terminal failure during peak summer loads. This permanent split capacitor motor (PSC) utilizes a 5 MFD / 370V capacitor and high-grade ball bearings to ensure low-friction operation and continuous air over duty. With a 70°C max ambient rating, the 5442H shaft-down or stud-mount configuration excels in demanding rooftop environments where 1/2-inch shaft compatibility is standard. This 4-pole motor provides the torque and efficiency needed to keep high-static fans moving and systems running at peak sub-cooling levels.
Key Benefits
- Dual Horsepower Rating: Functions as a 1/4 HP or 1/8 HP motor for increased inventory flexibility and specific load balancing.
- High Ambient Capability: Rated for up to 70°C (158°F), making it ideal for high-heat condenser environments.
- Enclosed Construction: The TEAO (Totally Enclosed Air Over) design keeps internal components protected from moisture and debris.
- Reliable Bearings: Features high-performance ball bearings for extended operation life compared to sleeve-unit alternatives.
- Standard Frame Size: The 42Y frame and stud mounting allow for simplified installation in a wide range of OEM condenser units.
Common Questions
What capacitor is required for the Nidec 5442H?
This motor requires a 5 MFD 370V run capacitor (sold separately) to maintain proper phased starting torque and operational efficiency.
Is this motor reversible for different fan blade pitches?
The 5442H typically operates in a CCW (Counter-Clockwise) lead-end rotation, specifically optimized for high-velocity fan blades.
Can this be used in 460V systems?
No, this motor is strictly rated for 208-230V 1-phase power. Using it with 460V will lead to immediate winding failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
