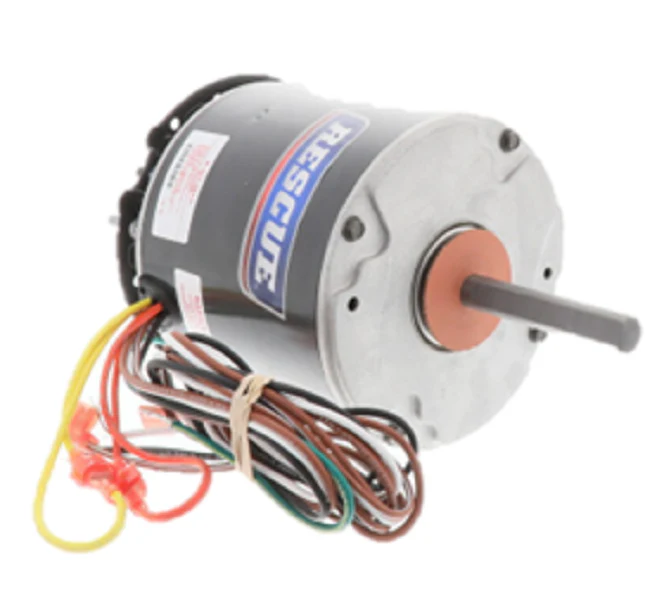

Nidec-US Motors 5441H Motor
The Nidec-US Motors 5441H is a high-performance RESCUE Permanent Split Capacitor Motor engineered specifically for residential and light commercial condenser fan motor replacements. Operating at 1075 RPM with a dual-rating of 1/4-1/6 HP, this 208-230Vac single-phase unit simplifies truck stock by consolidating multiple horsepower requirements into one durable solution. Built with a 42Y NEMA frame size and a totally enclosed air over (TEAO) enclosure, this motor is designed to withstand harsh outdoor environments. The ball bearing system ensures smooth continuous duty, while the 1/2-inch diameter by 3-inch flat shaft and reversible rotation capability provide broad compatibility with major OEM brands. Featuring the EZ-FIT mounting system with extended 8-32 studs, it aligns easily with common 4.312-inch and 4.464-inch bolt circles. For optimal performance, pair this motor with a 5 MFD / 370 VAC capacitor to maintain efficiency and handle high 70°C ambient temperatures.
Key Benefits- Multi-Horsepower Design: Replaces both 1/4 HP and 1/6 HP units, reducing the need for multiple inventory items on the job site.
- Enhanced Durability: The totally enclosed air over (TEAO) construction and special rotor treatment protect against corrosion and contaminants.
- High Ambient Rating: Capable of operating in temperatures up to 70°C (158°F), essential for HVAC side-discharge or roof-mounted units.
- Installation Flexibility: Features reversible rotation via simple lead reversal and an EZ-FIT mounting system for quick stud-mount setup.
- Reliable Protection: Equipped with an automatic reset thermal overload protector to prevent motor failure during voltage spikes or airflow obstructions.
Is this motor compatible with Rheem or Trane units?
Yes, the 5441H motor includes specific lead-end mounting holes designed to match Rheem and Trane bolt patterns, making it a versatile universal condenser motor replacement.
What capacitor is required for these specifications?
To meet the Permanent Split Capacitor (PSC) requirements, you must use a 5 MFD / 370V capacitor. Always verify the capacitance before energizing the replacement motor.
Can this motor be mounted in any orientation?
This stud-mount motor is designed for shaft-down or horizontal applications common in outside A.C. condenser units. The ball bearing design supports these orientations while maintaining efficiency and reducing noise.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $153.98
-65%$153.98
$53.89Nidec-US Motors 5441H Motor
The Nidec-US Motors 5441H is a high-performance RESCUE Permanent Split Capacitor Motor engineered specifically for residential and light commercial condenser fan motor replacements. Operating at 1075 RPM with a dual-rating of 1/4-1/6 HP, this 208-230Vac single-phase unit simplifies truck stock by consolidating multiple horsepower requirements into one durable solution. Built with a 42Y NEMA frame size and a totally enclosed air over (TEAO) enclosure, this motor is designed to withstand harsh outdoor environments. The ball bearing system ensures smooth continuous duty, while the 1/2-inch diameter by 3-inch flat shaft and reversible rotation capability provide broad compatibility with major OEM brands. Featuring the EZ-FIT mounting system with extended 8-32 studs, it aligns easily with common 4.312-inch and 4.464-inch bolt circles. For optimal performance, pair this motor with a 5 MFD / 370 VAC capacitor to maintain efficiency and handle high 70°C ambient temperatures.
Key Benefits- Multi-Horsepower Design: Replaces both 1/4 HP and 1/6 HP units, reducing the need for multiple inventory items on the job site.
- Enhanced Durability: The totally enclosed air over (TEAO) construction and special rotor treatment protect against corrosion and contaminants.
- High Ambient Rating: Capable of operating in temperatures up to 70°C (158°F), essential for HVAC side-discharge or roof-mounted units.
- Installation Flexibility: Features reversible rotation via simple lead reversal and an EZ-FIT mounting system for quick stud-mount setup.
- Reliable Protection: Equipped with an automatic reset thermal overload protector to prevent motor failure during voltage spikes or airflow obstructions.
Is this motor compatible with Rheem or Trane units?
Yes, the 5441H motor includes specific lead-end mounting holes designed to match Rheem and Trane bolt patterns, making it a versatile universal condenser motor replacement.
What capacitor is required for these specifications?
To meet the Permanent Split Capacitor (PSC) requirements, you must use a 5 MFD / 370V capacitor. Always verify the capacitance before energizing the replacement motor.
Can this motor be mounted in any orientation?
This stud-mount motor is designed for shaft-down or horizontal applications common in outside A.C. condenser units. The ball bearing design supports these orientations while maintaining efficiency and reducing noise.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
