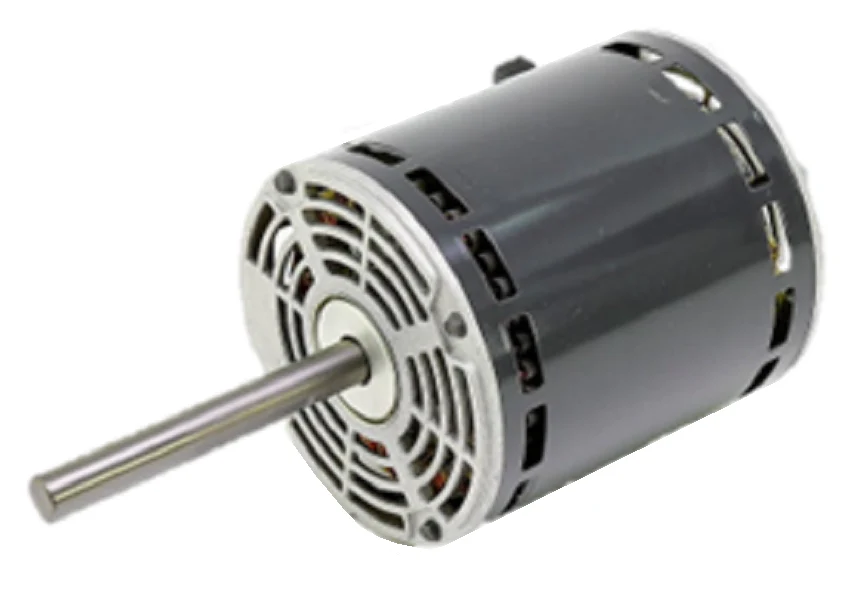

Nidec-US Motors 4670 Motor
The Nidec-US Motors 4670 is a heavy-duty 1 HP HVAC blower motor engineered for high-static residential and light commercial air handlers. This direct drive blower motor operates on 208-230V single-phase power, delivering 1100 RPM through a 4-speed furnace motor design. Built on a versatile 48Y frame, it features an open drip-proof (ODP) enclosure and a 5/8" diameter x 5.0" length shaft with a single flat. Designed for reliability in continuous duty applications, this PSC motor utilizes self-aligning sleeve bearings and CCW lead-end rotation to maintain optimal static pressure. Whether you are performing a US Motors 4670 cross reference or a fresh installation, the band mount configuration and multiple speed taps allow for precise airflow balancing across various ductwork configurations.
Key Benefits:- High-Torque Performance: 1 HP rating provides the necessary lift for high-tonnage air handlers and large-scale furnace blowers.
- Multi-Speed Flexibility: 4 distinct speed taps allow technicians to fine-tune CFM delivery to meet specific system requirements.
- Industrial Build Quality: The NEMA 48Y frame and ODP housing ensure efficient heat dissipation for long-term service in clean indoor environments.
- Standardized Fit: 5/8" shaft diameter matches standard OEM blower wheels, making it a reliable direct drive motor replacement.
- Stable Operation: Permanent Split Capacitor (PSC) design offers consistent torque and higher efficiency compared to shaded pole alternatives.
What are the wiring specifications for the 4670?
This motor features leaded terminals for 4-speed operation and requires a 15 MFD / 370V capacitor (sold separately) for proper startup and run torque.
The sleeve bearing system is designed primarily for horizontal shaft applications typical of most squirrel cage blower assemblies. How do I verify if the 4670 is a compatible replacement?
Ensure your existing motor matches the 48Y frame size, carries a 5/8" shaft diameter, operates on 208-230V, and matches the CCWLE rotation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
