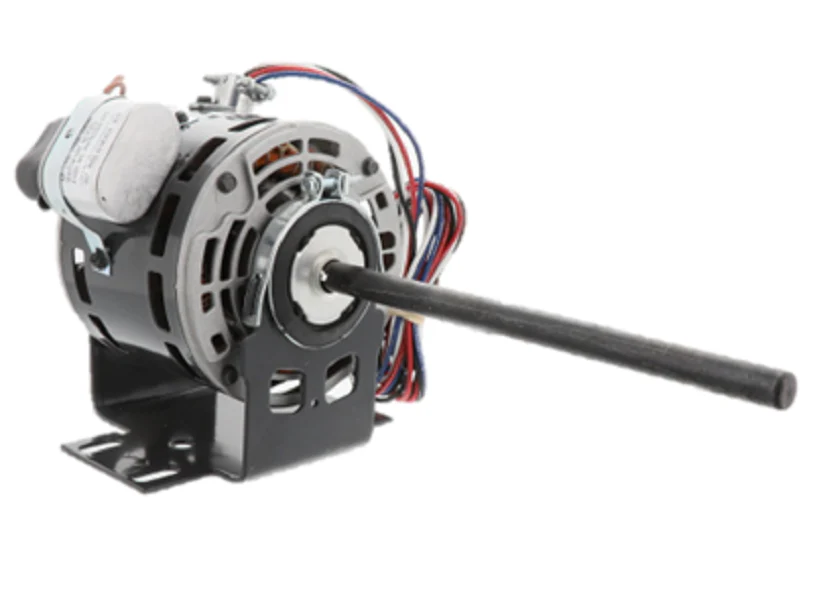

Nidec-US Motors 4125 Motor
The Nidec-US Motors 4125 Motor is a high-performance 1/30 HP blower motor specifically engineered for PTAC units and residential air handlers. Operating on 115Vac single phase power, this 6-pole PSC motor delivers a consistent 1100 RPM while maintaining an efficient 0.53 Amp draw. Built with a 42Y frame size and a standard 1/2 inch shaft, it serves as a reliable direct drive blower motor for various HVAC ventilation applications. The open drip proof (ODP) enclosure allows for optimal heat dissipation during continuous duty operation, while the self-aligning sleeve bearings ensure quiet performance. Designed with a resilient mount for vibration dampening and CCW lead end rotation, this motor is a drop-in replacement for technicians requiring precision-matched condenser fan motor specifications in tight equipment cabinets.
Key Benefits- Enhanced Durability: Features automatic reset thermal overload protection to prevent stator failure during high-ambient operation.
- Vibration Suppression: The resilient ring mount minimizes harmonic noise and mechanical fatigue on the blower housing.
- Optimized Efficiency: The permanent split capacitor design provides high starting torque with low running amperage.
- Application Versatility: Direct replacement for several IEC and Fasco models used in packaged terminal air conditioners and heat pumps.
What capacitor is required for the US Motors 4125?
This motor typically utilizes a 4 MFD 370V capacitor. Always verify the value on the motor nameplate during installation to ensure proper phase displacement.
Is this motor suitable for multi-speed applications?
Yes, the 4125 motor is a 3-speed blower motor, allowing for adjustable airflow control to match the original system design requirements.
Can I use this in an outdoor condenser unit?
The Open Drip Proof (ODP) rating is intended for indoor or protected applications where the motor is shielded from direct rain but requires air over cooling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
