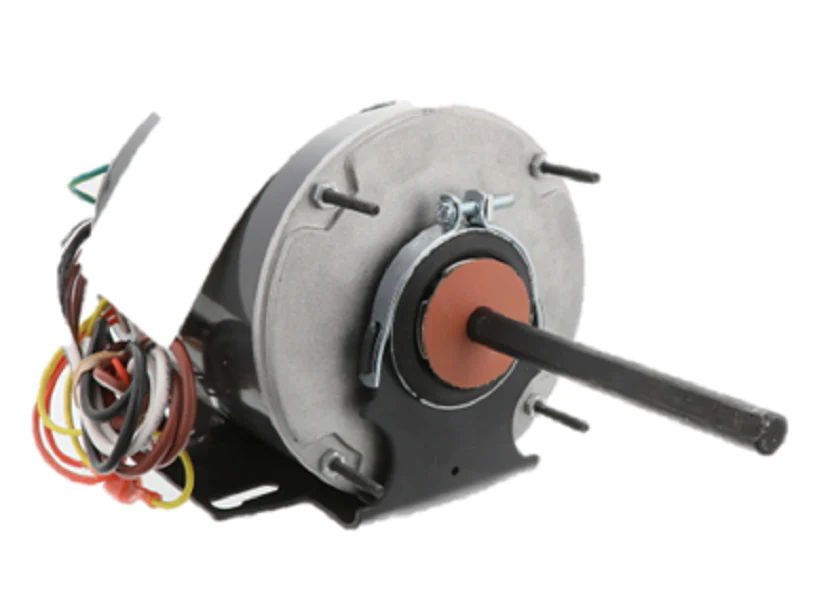

Nidec-US Motors 3848 Motor
The Nidec-US Motors 3848 is a high-efficiency condenser fan motor engineered for heavy-duty HVACR applications. Operating at 1/2 HP and 1075 RPM, this PSC motor is built for continuous duty (Air Over) to prevent heat-related failures in demanding outdoor environments. The 48Z NEMA frame size features a 5.6-inch diameter and a 1/2 inch shaft with double flats, facilitating a secure and versatile fit for various blade configurations. With a reversible rotation feature, this multi-fit motor serves as a robust replacement for a wide range of OEM units, reducing the need for extensive truck stock.
Designed for contractors, the US Motors 3848 utilizes self-aligning sleeve bearings with an all-angle thrust system, allowing for vertical or horizontal mounting. The Open Drip Proof (ODP) enclosure provides necessary ventilation while protecting internal components from falling moisture. This single-phase 230V motor requires a 7.5 MFD/370V capacitor for optimal torque and efficiency. Integrated automatic reset thermal overload protection ensures the motor shuts down safely during voltage spikes or airflow obstructions, preserving the stator and windings from terminal damage during peak summer loads.
Key Benefits- High Efficiency Economizer Rated: Optimized for lower amperage draw (3.1 Amps) to reduce operating costs and increase system longevity.
- Universal Compatibility: Reversible rotation and 48Z frame with extended studs (8-32 thread) offer a versatile drop-in solution for most condensing units.
- All-Angle Mounting: The advanced thrust bearing system supports shaft-up, shaft-down, or horizontal installation without premature wear.
- Durable Construction: Features Class B insulation and a water slinger to protect the motor from moisture ingress and high ambient temperatures.
What capacitor is required for the Nidec 3848?
This motor requires a 7.5 MFD / 370V permanent split capacitor. Always replace the capacitor when installing a new motor to ensure proper starting torque and efficiency.
Can I use this motor to replace a CCW or CW original?
Yes, the 3848 is reversible. Simply swap the internal lead wires per the connection diagram on the nameplate to match the required rotation of your fan blade.
Is this motor suitable for totally enclosed applications?
No, this is an Open Drip Proof Air Over (ODPAO) motor. It relies on the airflow from the fan blade to dissipate heat and should not be used in applications where airflow is restricted or a totally enclosed motor is specified.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
