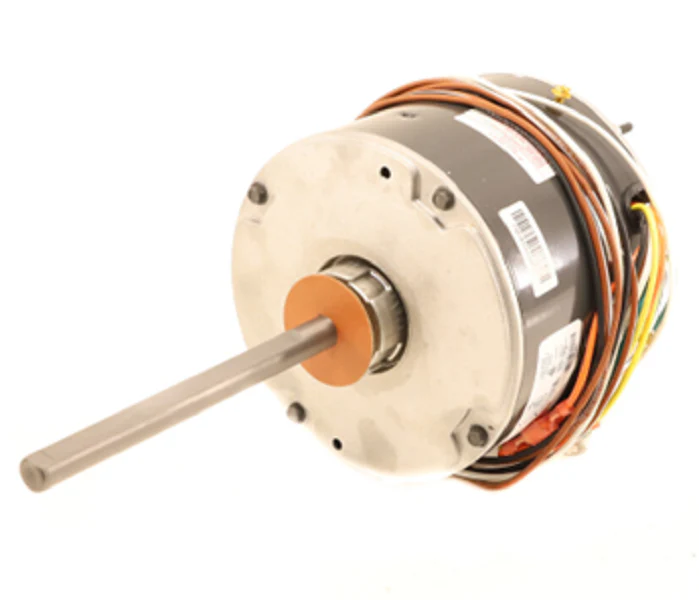

Nidec-US Motors 3736H Condenser Motor
The Nidec-US Motors 3736H Condenser Motor is a high-performance, 1/4 HP HVAC replacement motor designed for demanding commercial and residential applications. Operating at 460Vac, this single-phase PSC (Permanent Split Capacitor) motor delivers a consistent 1075 RPM to maintain optimal airflow across condensing coils. Built with a NEMA 48Y frame and a totally enclosed air over (TEAO) enclosure, it provides superior protection against environmental contaminants. The motor features 6201 double-sealed ball bearings and is rated for 70°C high-ambient temperatures, ensuring reliable performance in extreme heat. Its reversible rotation and stud mount design allow for versatile installation across various manufacturers' units. This continuous duty motor includes an automatic reset thermal overload protector to prevent winding failure during high-load conditions. The US Motors 3736H is the professional choice for technicians seeking a rugged, 6-pole solution for high-voltage condenser systems.
Key Benefits- High-Ambient Reliability: Rated for up to 70°C (158°F) to handle extreme rooftop or enclosure temperatures without premature failure.
- Enhanced Durability: Equipped with double-sealed ball bearings and Class F insulation for extended service life in heavy-use cycles.
- Universal Versatility: Features reversible rotation and extended mounting studs for quick adaptation to various fan blades and unit configurations.
- System Protection: Integrated automatic thermal overload protection safeguards the 460V windings from overheating during voltage fluctuations.
- Efficient Performance: 0.8 Amp draw and PSC design offer consistent torque and energy efficiency for 24/7 HVAC operations.
What capacitor is required for the US Motors 3736H?
This motor typically requires a 7.5 MFD / 370V capacitor for proper starting and running performance. Always check the nameplate for the specific rating.
Is the 3736H compatible with 208-230V systems?
No, this model is specifically wound for 460V power supplies. Using it on lower voltage will result in motor failure and potential electrical hazards.
Can this motor be mounted in any orientation?
Yes, the all-angle ball bearing system and hubless lead end allow for shaft-up, shaft-down, or horizontal mounting as needed for your condenser unit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
