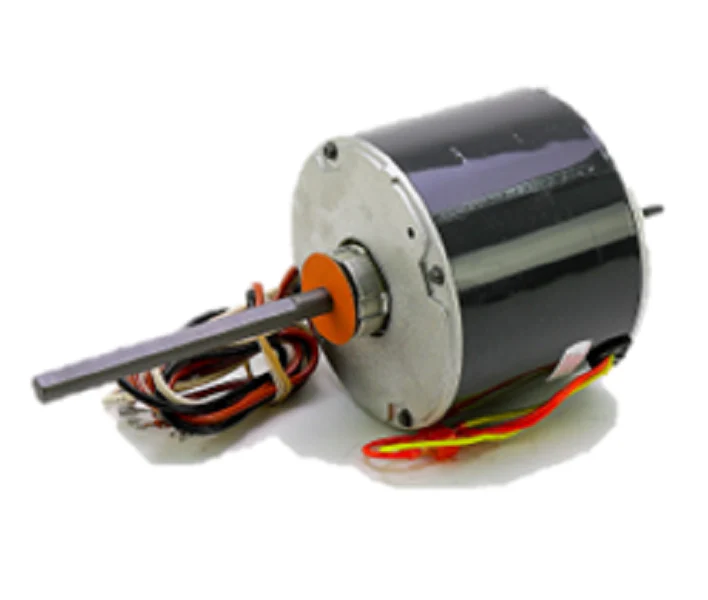

Nidec-US Motors 3736 Motor
The Nidec-US Motors 3736 Motor is a high-performance 1/4 HP condenser fan motor engineered for demanding 460V HVAC systems. Built with a 48Y NEMA frame and a 5.6-inch diameter, this 1075 RPM unit provides reliable operation in both residential and commercial condensing applications. It features a Totally Enclosed Air Over (TEAO) enclosure, protecting internal components from environmental debris, while the ball bearing system supports all-angle mounting for maximum installation flexibility. As a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD / 370V capacitor for optimized efficiency and includes an automatic reset thermal overload protector. Designed for durability, the reversible rotation (CW/CCW) and 1/2" diameter x 6" length shaft with a flat ensure OEM compatibility across major brands like Carrier, Goodman, and Trane. With a 60°C ambient rating and Class B insulation, this single-phase motor is a technician’s standard for high-voltage replacements.
Key Benefits- Enhanced Durability: Equipped with ball bearings and a TEAO enclosure for extended life in extreme outdoor conditions.
- Versatile Installation: Features all-angle mounting and reversible rotation to replace multiple motor configurations in the field.
- Thermal Protection: Integrated automatic reset thermal overload protector prevents winding failure during high-head pressure events.
- Broad Compatibility: The NEMA 48Y frame and extended studs allow for seamless high-voltage motor retrofitting.
What capacitor is required for the US Motors 3736?
This motor typically requires a 7.5 MFD / 370V capacitor for proper startup and performance. Always verify the rating on the nameplate.
Can this motor be mounted in any orientation?
Yes, the ball bearing design and stud mount configuration allow for all-angle mounting, including shaft-up or shaft-down positions.
How do I change the rotation on this motor?
The motor features reversible rotation; you can switch the lead connections following the provided wiring diagram to achieve CW or CCW rotation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $117.87
-65%$117.87
$41.25Nidec-US Motors 3736 Motor
The Nidec-US Motors 3736 Motor is a high-performance 1/4 HP condenser fan motor engineered for demanding 460V HVAC systems. Built with a 48Y NEMA frame and a 5.6-inch diameter, this 1075 RPM unit provides reliable operation in both residential and commercial condensing applications. It features a Totally Enclosed Air Over (TEAO) enclosure, protecting internal components from environmental debris, while the ball bearing system supports all-angle mounting for maximum installation flexibility. As a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD / 370V capacitor for optimized efficiency and includes an automatic reset thermal overload protector. Designed for durability, the reversible rotation (CW/CCW) and 1/2" diameter x 6" length shaft with a flat ensure OEM compatibility across major brands like Carrier, Goodman, and Trane. With a 60°C ambient rating and Class B insulation, this single-phase motor is a technician’s standard for high-voltage replacements.
Key Benefits- Enhanced Durability: Equipped with ball bearings and a TEAO enclosure for extended life in extreme outdoor conditions.
- Versatile Installation: Features all-angle mounting and reversible rotation to replace multiple motor configurations in the field.
- Thermal Protection: Integrated automatic reset thermal overload protector prevents winding failure during high-head pressure events.
- Broad Compatibility: The NEMA 48Y frame and extended studs allow for seamless high-voltage motor retrofitting.
What capacitor is required for the US Motors 3736?
This motor typically requires a 7.5 MFD / 370V capacitor for proper startup and performance. Always verify the rating on the nameplate.
Can this motor be mounted in any orientation?
Yes, the ball bearing design and stud mount configuration allow for all-angle mounting, including shaft-up or shaft-down positions.
How do I change the rotation on this motor?
The motor features reversible rotation; you can switch the lead connections following the provided wiring diagram to achieve CW or CCW rotation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
