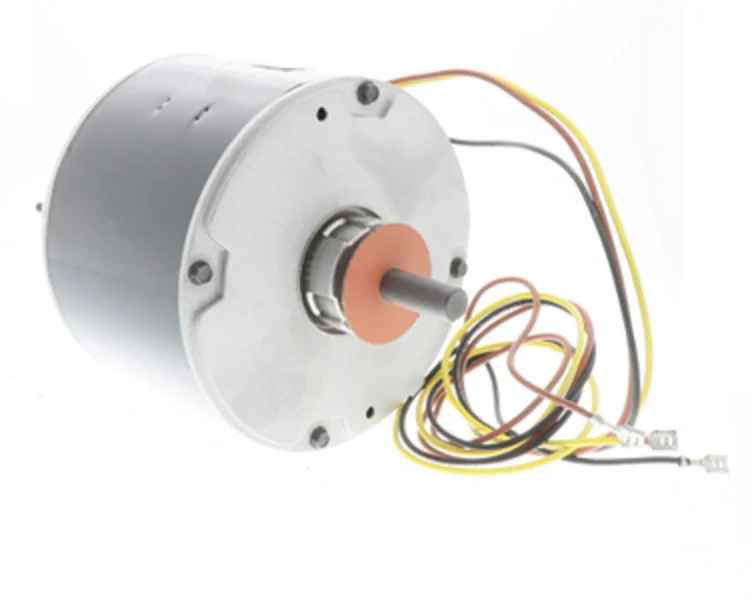

Nidec-US Motors 3405 Motor
The Nidec-US Motors 3405 is a high-performance PSC condenser fan motor engineered for demanding outdoor environments. This 1/6 HP HVAC motor operates at 208-230V and delivers a consistent 1500 RPM, making it a critical Carrier replacement motor (specifically for HC33GE208 and 5KCP39BGR201BS models). Built with a totally enclosed air over (TEAO) housing, it prevents moisture and debris from compromising the internal windings during continuous duty. The 48Y NEMA frame design features extended mounting studs and a 1/2" diameter shaft for direct mechanical integration. Utilizing a permanent split capacitor design, this motor maintains high electrical efficiency and reliable starting torque. Professional-grade ball bearings and an all-angle thrust system ensure the US Motors 3405 handles various mounting orientations without premature wear. For contractors, this unit provides a precise technical match for high-ambient residential and commercial condensing units requiring 0.85 amps and CW lead end rotation.
Key Benefits
- Direct OEM Compatibility: Serves as a primary aftermarket solution for Carrier outside condensers, eliminating field modifications.
- TEAO Protection: The totally enclosed air over design is essential for maintaining cooling across the motor surfaces in restrictive outdoor cabinets.
- Extended Service Life: Heavy-duty ball bearings and Class B insulation support reliable operation in ambient temperatures up to 60°C.
- Ease of Installation: Features extended 8-32 studs and 30-38 inch leads for fast connection in tight HVAC housings.
- High Efficiency: The PSC motor configuration optimizes power consumption while delivering stable RPM under load.
Common Questions
Is this a direct replacement for Carrier HC33GE208?
Yes, the 3405 is the industry-standard aftermarket replacement for various Carrier and Bryant condenser fan motors with matching horsepower and speed ratings.
Does this motor include the run capacitor?
While this motor requires a 5 MFD / 370V capacitor for operation, it is recommended to install a fresh capacitor to ensure the permanent split capacitor system functions at peak efficiency.
Can this motor be mounted in any orientation?
The 3405 features an all-angle thrust system and ball bearings, allowing it to be mounted shaft-up, shaft-down, or horizontally depending on the condenser design.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
