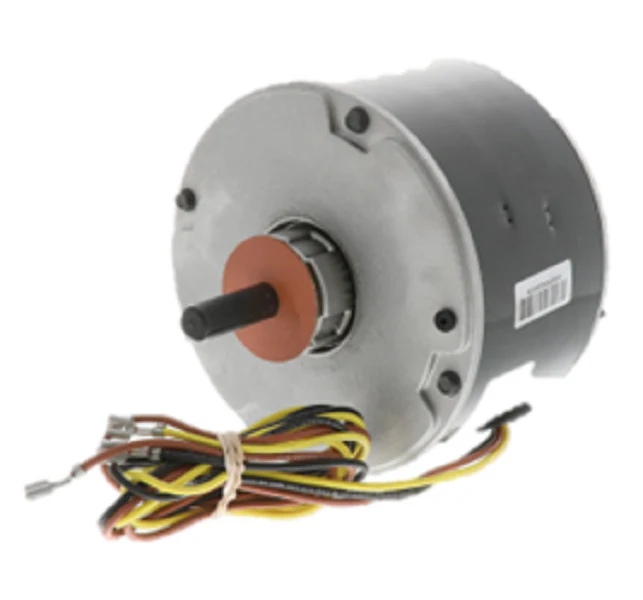

Nidec-US Motors 3401 Motor
The Nidec US Motors 3401 Motor is a high-performance PSC condenser fan motor engineered for demanding residential and commercial HVACR applications. Operating at 1100 RPM with a 1/12 HP output, this 208-230V single phase motor is a drop-in 48Y NEMA frame replacement specifically optimized for Carrier and International Comfort Products (ICP) condensing units. The TEAO (Totally Enclosed Air Over) enclosure provides robust protection against environmental debris, ensuring reliable heat dissipation across the windings during continuous duty cycles.
Built with durability in mind, the 3401 features a self-aligning sleeve bearing system and an all-angle thrust design to handle various mounting orientations. The 1/2" diameter shaft and CW lead end rotation ensure compatibility with standard fan blade configurations. For professional installation, this stud mount motor includes extended studs for easy hardware alignment and 36" leads for flexible wiring. To ensure system longevity, it is designed for use with a 5 MFD/370V capacitor and includes an automatic reset thermal overload protector to prevent winding failure during high-ambient operation.
Key Benefits
- Optimized Heat Management: TEAO design utilizes the system airflow to maintain safe operating temperatures.
- Broad Compatibility: Standard 48Y frame and stud mount configuration simplify the replacement of OEM motors in major brand condensers.
- Resilient Construction: Class B insulation and all-angle thrust bearings provide stability in vertical or horizontal positions.
- Automatic Protection: Integrated thermal overload protection prevents burnout from electrical or mechanical stress.
Common Questions
- Is this motor reversible? While some variants are reversible, the 3401 is factory-configured for CW rotation viewing from the lead end (CWLE). Always verify your existing fan pitch before install.
- What capacitor should be used with the US Motors 3401? It requires a 5 MFD / 370 VAC capacitor for peak starting torque and running efficiency.
- Does this motor include mounting hardware? It features extended studs for standard residential condenser mounting; however, reusable nuts from the existing unit may be required depending on the bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $184.95
-65%$184.95
$64.73Nidec-US Motors 3401 Motor
The Nidec US Motors 3401 Motor is a high-performance PSC condenser fan motor engineered for demanding residential and commercial HVACR applications. Operating at 1100 RPM with a 1/12 HP output, this 208-230V single phase motor is a drop-in 48Y NEMA frame replacement specifically optimized for Carrier and International Comfort Products (ICP) condensing units. The TEAO (Totally Enclosed Air Over) enclosure provides robust protection against environmental debris, ensuring reliable heat dissipation across the windings during continuous duty cycles.
Built with durability in mind, the 3401 features a self-aligning sleeve bearing system and an all-angle thrust design to handle various mounting orientations. The 1/2" diameter shaft and CW lead end rotation ensure compatibility with standard fan blade configurations. For professional installation, this stud mount motor includes extended studs for easy hardware alignment and 36" leads for flexible wiring. To ensure system longevity, it is designed for use with a 5 MFD/370V capacitor and includes an automatic reset thermal overload protector to prevent winding failure during high-ambient operation.
Key Benefits
- Optimized Heat Management: TEAO design utilizes the system airflow to maintain safe operating temperatures.
- Broad Compatibility: Standard 48Y frame and stud mount configuration simplify the replacement of OEM motors in major brand condensers.
- Resilient Construction: Class B insulation and all-angle thrust bearings provide stability in vertical or horizontal positions.
- Automatic Protection: Integrated thermal overload protection prevents burnout from electrical or mechanical stress.
Common Questions
- Is this motor reversible? While some variants are reversible, the 3401 is factory-configured for CW rotation viewing from the lead end (CWLE). Always verify your existing fan pitch before install.
- What capacitor should be used with the US Motors 3401? It requires a 5 MFD / 370 VAC capacitor for peak starting torque and running efficiency.
- Does this motor include mounting hardware? It features extended studs for standard residential condenser mounting; however, reusable nuts from the existing unit may be required depending on the bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
