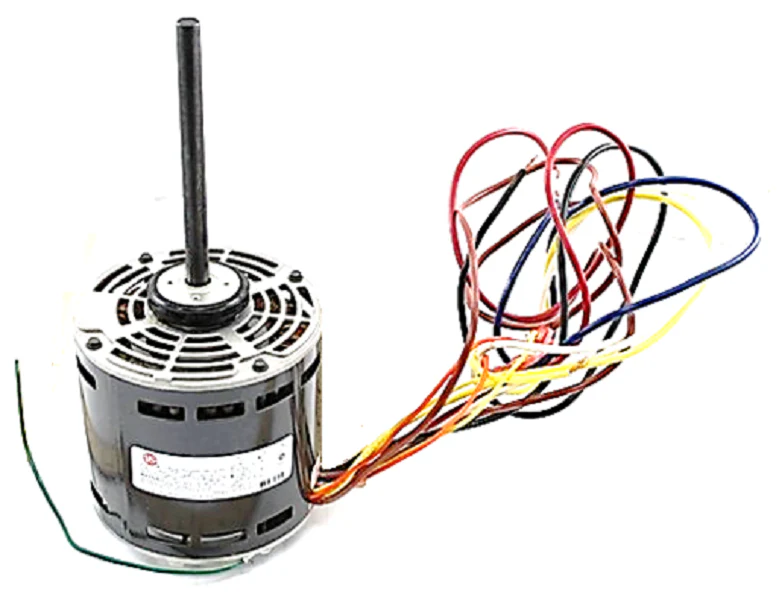

Nidec-US Motors 3340 Motor
The Nidec-US Motors 3340 is a heavy-duty PSC blower motor designed for high-static applications in residential and commercial HVAC systems. This 3/4 HP motor operates on 115Vac, delivering a steady 1075 RPM with a rated current draw of 12.1 Amps. Built on a 48Y NEMA frame size, it features an Open Air Over (OAO) enclosure, making it ideal for installation within the airstream to ensure optimal heat dissipation. The unit utilizes self-aligning sleeve bearings for quiet operation and long-term mechanical reliability under continuous duty cycles. With a 1/2" shaft and reversible rotation capabilities, it serves as a versatile direct drive blower motor replacement across multiple OEM furnace and air handler brands. Mounting is flexible, accommodating both stud and hub ring mount configurations to match existing bracket hardware in the field.
Key Benefits
- Versatile Rotation: Simplifies inventory by allowing on-site clockwise or counter-clockwise configuration.
- Open Air Over Design: Optimizes cooling performance when mounted in the blower housing, preventing thermal overload.
- Universal Mounting: The NEMA 48Y frame supports multiple mounting styles for faster field retrofits.
- Sleeve Bearing System: Engineered for minimal vibration and reduced noise profiles in noise-sensitive environments.
Common Questions
Is the Nidec 3340 a direct replacement for 48-frame blower motors?
Yes, its 48Y NEMA frame and dual mounting options make it a standard fit for most 5.6-inch diameter motor applications requiring a 1/2-inch shaft.
Can I change the rotation of this motor in the field?
Yes, this reversible rotation motor features a simple lead-swapping procedure to match the specific airflow requirements of your blower wheel.
What capacitor is required for the US Motors 3340?
As a Permanent Split Capacitor (PSC) motor, it requires a specific run capacitor (typically 10-15 MFD/370V) to achieve proper torque and amp draw; always check the nameplate for exact ratings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $416.47
-65%$416.47
$145.76Nidec-US Motors 3340 Motor
The Nidec-US Motors 3340 is a heavy-duty PSC blower motor designed for high-static applications in residential and commercial HVAC systems. This 3/4 HP motor operates on 115Vac, delivering a steady 1075 RPM with a rated current draw of 12.1 Amps. Built on a 48Y NEMA frame size, it features an Open Air Over (OAO) enclosure, making it ideal for installation within the airstream to ensure optimal heat dissipation. The unit utilizes self-aligning sleeve bearings for quiet operation and long-term mechanical reliability under continuous duty cycles. With a 1/2" shaft and reversible rotation capabilities, it serves as a versatile direct drive blower motor replacement across multiple OEM furnace and air handler brands. Mounting is flexible, accommodating both stud and hub ring mount configurations to match existing bracket hardware in the field.
Key Benefits
- Versatile Rotation: Simplifies inventory by allowing on-site clockwise or counter-clockwise configuration.
- Open Air Over Design: Optimizes cooling performance when mounted in the blower housing, preventing thermal overload.
- Universal Mounting: The NEMA 48Y frame supports multiple mounting styles for faster field retrofits.
- Sleeve Bearing System: Engineered for minimal vibration and reduced noise profiles in noise-sensitive environments.
Common Questions
Is the Nidec 3340 a direct replacement for 48-frame blower motors?
Yes, its 48Y NEMA frame and dual mounting options make it a standard fit for most 5.6-inch diameter motor applications requiring a 1/2-inch shaft.
Can I change the rotation of this motor in the field?
Yes, this reversible rotation motor features a simple lead-swapping procedure to match the specific airflow requirements of your blower wheel.
What capacitor is required for the US Motors 3340?
As a Permanent Split Capacitor (PSC) motor, it requires a specific run capacitor (typically 10-15 MFD/370V) to achieve proper torque and amp draw; always check the nameplate for exact ratings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
