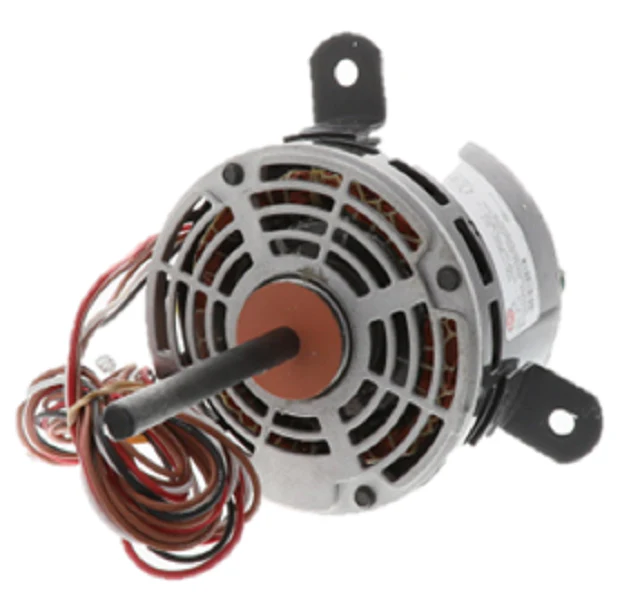

Nidec-US Motors 3303 Motor
The Nidec-US Motors 3303 is a robust 1/4 HP condenser fan motor engineered for demanding outdoor residential and commercial HVAC applications. Operating at 208-230Vac and 1075 RPM, this Permanent Split Capacitor (PSC) motor features a versatile 2-speed configuration, allowing for precise airflow management and system efficiency. Built with a 48Y NEMA frame and an Open Air Over (OAO) enclosure, the 3303 utilizes a self-aligning sleeve bearing system to ensure reliable operation under standard environmental loads. The lug mount design and 1/2" diameter shaft facilitate a straightforward drop-in replacement for many OEM units. With reversible rotation capabilities and a 2.5 Amp draw, this US Motors HVAC replacement motor provides the flexibility needed to match existing fan blade pitches and airflow requirements in the field, ensuring proper head pressure control and optimal heat transfer across the condenser coil.
Key Benefits
- Dual-Speed Flexibility: Supports multi-stage cooling systems or airflow optimization for noise reduction.
- Electrically Reversible: Simple lead switching allows for either CW or CCW rotation, reducing the need to stock multiple SKUs.
- NEMA 48Y Frame: Standardized dimensions and lug mounting ensure compatibility with a wide range of residential condensing units.
- Reliable PSC Design: Utilizes a run capacitor to provide consistent torque and high efficiency during continuous operation.
Common Questions
What capacitor is required for the US Motors 3303?
Most 1/4 HP 1075 RPM motors in this class require a 5 MFD / 370V run capacitor; however, always verify the rating on the motor nameplate during installation.
Can this motor be mounted in any orientation?
The 3303 is designed with an Open Air Over enclosure and sleeve bearings, primarily intended for shaft-up or shaft-down applications where the fan provides constant cooling airflow over the motor windings.
Will this motor replace a single-speed condenser motor?
Yes, by utilizing only the high-speed lead, this motor can replace a single-speed 1075 RPM unit, provided the physical frame size and electrical specifications match.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $263.35
-65%$263.35
$92.17Nidec-US Motors 3303 Motor
The Nidec-US Motors 3303 is a robust 1/4 HP condenser fan motor engineered for demanding outdoor residential and commercial HVAC applications. Operating at 208-230Vac and 1075 RPM, this Permanent Split Capacitor (PSC) motor features a versatile 2-speed configuration, allowing for precise airflow management and system efficiency. Built with a 48Y NEMA frame and an Open Air Over (OAO) enclosure, the 3303 utilizes a self-aligning sleeve bearing system to ensure reliable operation under standard environmental loads. The lug mount design and 1/2" diameter shaft facilitate a straightforward drop-in replacement for many OEM units. With reversible rotation capabilities and a 2.5 Amp draw, this US Motors HVAC replacement motor provides the flexibility needed to match existing fan blade pitches and airflow requirements in the field, ensuring proper head pressure control and optimal heat transfer across the condenser coil.
Key Benefits
- Dual-Speed Flexibility: Supports multi-stage cooling systems or airflow optimization for noise reduction.
- Electrically Reversible: Simple lead switching allows for either CW or CCW rotation, reducing the need to stock multiple SKUs.
- NEMA 48Y Frame: Standardized dimensions and lug mounting ensure compatibility with a wide range of residential condensing units.
- Reliable PSC Design: Utilizes a run capacitor to provide consistent torque and high efficiency during continuous operation.
Common Questions
What capacitor is required for the US Motors 3303?
Most 1/4 HP 1075 RPM motors in this class require a 5 MFD / 370V run capacitor; however, always verify the rating on the motor nameplate during installation.
Can this motor be mounted in any orientation?
The 3303 is designed with an Open Air Over enclosure and sleeve bearings, primarily intended for shaft-up or shaft-down applications where the fan provides constant cooling airflow over the motor windings.
Will this motor replace a single-speed condenser motor?
Yes, by utilizing only the high-speed lead, this motor can replace a single-speed 1075 RPM unit, provided the physical frame size and electrical specifications match.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
