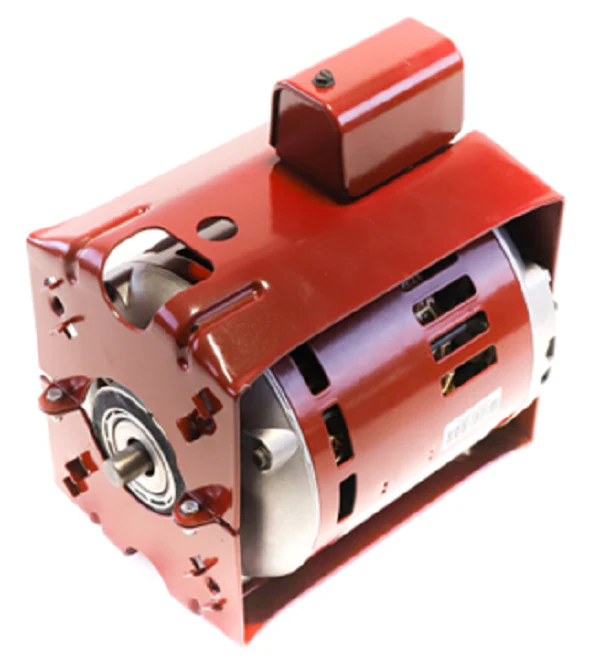

Nidec-US Motors 3257 Motor
The Nidec-US Motors 3257 Motor is a specialized 1/6 HP hot water circulating pump motor engineered for high-demand hydronic heating and cooling systems. Built to NEMA 48YZ frame specifications, this 115V single phase motor operates at a synchronous 1800 RPM (1725 RPM base speed) with a 3.8 Amp draw. Featuring a split phase design and Open Drip Proof (ODP) enclosure, it provides efficient cooling during continuous duty cycles. This model is a direct drop-in for standard hot water circulator pump applications requiring a 1/2" shaft and Counter-Clockwise Switch End (CCWSE) rotation. The robust ball bearing system and bracket mount ensure structural stability and quiet operation in residential or commercial mechanical rooms. For field reliability, the US Motors 3257 includes an automatic reset thermal overload protector to prevent winding damage during abnormal load conditions.
- Optimized Compatibility: Designed as a direct circulating pump motor replacement with a standard 48YZ NEMA frame and 1/2" diameter shaft.
- Durable Construction: Features ball bearings and an Open Drip Proof (ODP) housing for effective heat dissipation and long-service life in indoor environments.
- Reliable Starting: The split phase start mechanism provides dependable torque for hot water circulators without the need for external capacitors.
- Safety Integrated: Includes an automatic thermal protector to automatically disconnect power if internal temperatures exceed safe operating limits.
Common Questions
Is the 3257 motor compatible with variable frequency drives (VFDs)?
Standard split phase motors like the Nidec 3257 are typically intended for single-speed, across-the-line starting and may not be suitable for VFD operation unless specifically rated for inverter duty.
What does the "Z" in the 48YZ frame designation mean?
The "Z" suffix indicates a non-standard shaft or mounting dimension. In the case of the US Motors 3257, this specifically refers to the specialized shaft and mounting configuration used by major pump manufacturers.
Can I change the rotation of this motor in the field?
This specific 3257 model is configured for CCW Switch End (CCWSE) rotation. Always verify the rotation requirements of your pump housing before installation to ensure proper flow and head pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $254.81
-65%$254.81
$89.18Nidec-US Motors 3257 Motor
The Nidec-US Motors 3257 Motor is a specialized 1/6 HP hot water circulating pump motor engineered for high-demand hydronic heating and cooling systems. Built to NEMA 48YZ frame specifications, this 115V single phase motor operates at a synchronous 1800 RPM (1725 RPM base speed) with a 3.8 Amp draw. Featuring a split phase design and Open Drip Proof (ODP) enclosure, it provides efficient cooling during continuous duty cycles. This model is a direct drop-in for standard hot water circulator pump applications requiring a 1/2" shaft and Counter-Clockwise Switch End (CCWSE) rotation. The robust ball bearing system and bracket mount ensure structural stability and quiet operation in residential or commercial mechanical rooms. For field reliability, the US Motors 3257 includes an automatic reset thermal overload protector to prevent winding damage during abnormal load conditions.
- Optimized Compatibility: Designed as a direct circulating pump motor replacement with a standard 48YZ NEMA frame and 1/2" diameter shaft.
- Durable Construction: Features ball bearings and an Open Drip Proof (ODP) housing for effective heat dissipation and long-service life in indoor environments.
- Reliable Starting: The split phase start mechanism provides dependable torque for hot water circulators without the need for external capacitors.
- Safety Integrated: Includes an automatic thermal protector to automatically disconnect power if internal temperatures exceed safe operating limits.
Common Questions
Is the 3257 motor compatible with variable frequency drives (VFDs)?
Standard split phase motors like the Nidec 3257 are typically intended for single-speed, across-the-line starting and may not be suitable for VFD operation unless specifically rated for inverter duty.
What does the "Z" in the 48YZ frame designation mean?
The "Z" suffix indicates a non-standard shaft or mounting dimension. In the case of the US Motors 3257, this specifically refers to the specialized shaft and mounting configuration used by major pump manufacturers.
Can I change the rotation of this motor in the field?
This specific 3257 model is configured for CCW Switch End (CCWSE) rotation. Always verify the rotation requirements of your pump housing before installation to ensure proper flow and head pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
