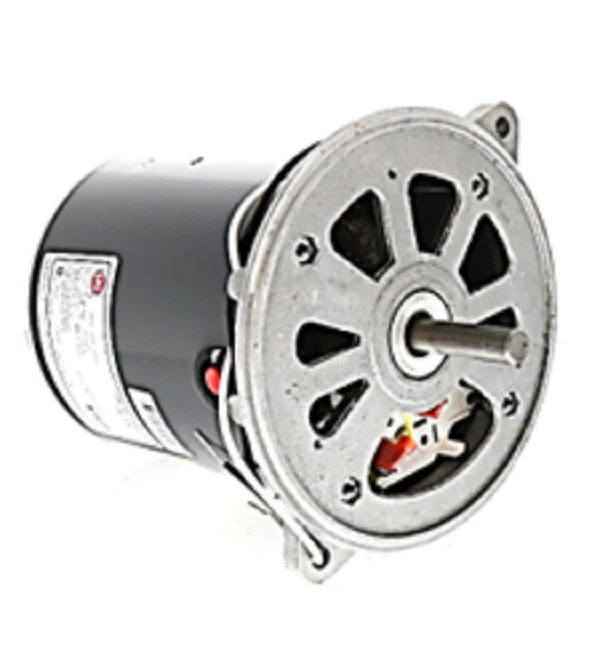

Nidec-US Motors 3252 Motor
The Nidec-US Motors 3252 is a professional-grade oil burner motor engineered for high-performance heating applications requiring a 1/6 HP output. Operating on 115Vac single phase power, this split phase motor delivers a consistent 1725 RPM, making it a reliable replacement for standard residential and light commercial oil burners. Built on a 48N NEMA frame size, it features an N-Flange mount and a standard 1/2" shaft for precise alignment with fuel pump couplings. The totally enclosed non-ventilated (TENV) housing protects internal windings from airborne contaminants common in mechanical rooms, while the sealed ball bearings handle axial and radial loads efficiently. With reversible rotation capabilities and a 3.1 Amp full-load rating, the 3252 offers the versatility needed for various blower and pump configurations, ensuring peak combustion efficiency and system reliability during critical heating cycles.
- Reduced Friction: Ball bearing construction ensures smooth operation and high heat tolerance.
- Environmental Protection: TENV enclosure prevents soot and dust ingress into the motor windings.
- Universal Mounting: The N-Flange design allows for direct mounting to most major oil burner housings.
- Field Reversible: Rotation can be easily switched to match the specific oil burner motor rotation requirements of your equipment.
Common Questions
What is the frame size of the US Motors 3252?
The 3252 utilizes a 48N frame, which features a specific 2-bolt flange pattern designed specifically for oil burner assemblies.
Can this motor replace a 1/7 HP or 1/8 HP oil burner motor?
Yes, as long as the 115V power supply, 48N flange, and 1/2" shaft dimensions match, a 1/6 HP motor can safely replace lower horsepower units in this application.
Is the rotation CCW or CW?
The Nidec 3252 is reversible, allowing technicians to configure the rotation to either clockwise or counter-clockwise during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
