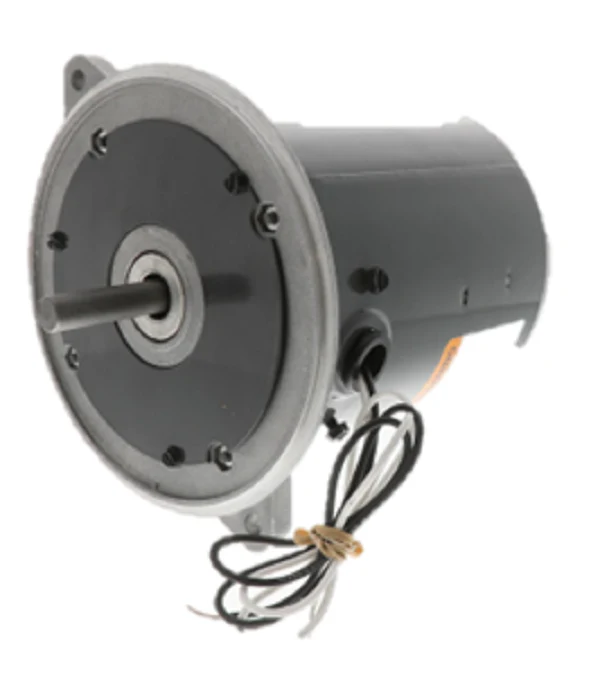

Nidec-US Motors 3196 Motor
The Nidec-US Motors 3196 is a professional-grade split phase oil burner motor engineered for reliable ignition and combustion performance in residential and light commercial heating systems. Operating at 1/8 HP with a standard 115Vac input, this single phase motor delivers a consistent 1725 RPM, drawing 2.4 Amps under full load. Built on a 48N NEMA frame size, it features an N-flange mount and a 1/2" shaft, ensuring seamless mechanical integration with standard burner housings. The totally enclosed non-ventilated (TENV) enclosure protects internal components from airborne particulates when mounted, while the ball bearing construction minimizes friction for extended operation. With reversible rotation capabilities, the 3196 provides the field flexibility required for various burner configurations, making it a staple HVAC replacement motor for contractors focusing on system uptime and precise airflow control.
Key Benefits- High-Torque Split Phase Design: Optimized for the quick-start demands of oil burner applications.
- Robust TENV Enclosure: Prevents dust and debris ingress, maintaining internal integrity in demanding mechanical rooms.
- Field Reversibility: Simplifies inventory by allowing rotation adjustment to match specific OEM burner requirements.
- Precision Ball Bearings: Engineered for quiet operation and reduced maintenance intervals compared to sleeve bearing alternatives.
- Industry Standard 48N Frame: Ensures a drop-in fit for a wide variety of 1/8 HP oil burner motors.
What are the mounting requirements for the US Motors 3196?
This motor utilizes a standard N-flange mounting system and a 48N frame, which is specifically designed to bolt directly onto the burner housing of most major oil heating units.
Can the rotation of this motor be changed in the field?
Yes, the 3196 features reversible rotation. Technicians can swap the internal lead connections to match either clockwise or counter-clockwise requirements prior to installation.
Is this motor suitable for continuous duty?
While designed for the cycling nature of oil burners, its TENV construction and ball bearing system allow it to handle the thermal demands of standard heating seasons effectively.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $161.73
-65%$161.73
$56.61Nidec-US Motors 3196 Motor
The Nidec-US Motors 3196 is a professional-grade split phase oil burner motor engineered for reliable ignition and combustion performance in residential and light commercial heating systems. Operating at 1/8 HP with a standard 115Vac input, this single phase motor delivers a consistent 1725 RPM, drawing 2.4 Amps under full load. Built on a 48N NEMA frame size, it features an N-flange mount and a 1/2" shaft, ensuring seamless mechanical integration with standard burner housings. The totally enclosed non-ventilated (TENV) enclosure protects internal components from airborne particulates when mounted, while the ball bearing construction minimizes friction for extended operation. With reversible rotation capabilities, the 3196 provides the field flexibility required for various burner configurations, making it a staple HVAC replacement motor for contractors focusing on system uptime and precise airflow control.
Key Benefits- High-Torque Split Phase Design: Optimized for the quick-start demands of oil burner applications.
- Robust TENV Enclosure: Prevents dust and debris ingress, maintaining internal integrity in demanding mechanical rooms.
- Field Reversibility: Simplifies inventory by allowing rotation adjustment to match specific OEM burner requirements.
- Precision Ball Bearings: Engineered for quiet operation and reduced maintenance intervals compared to sleeve bearing alternatives.
- Industry Standard 48N Frame: Ensures a drop-in fit for a wide variety of 1/8 HP oil burner motors.
What are the mounting requirements for the US Motors 3196?
This motor utilizes a standard N-flange mounting system and a 48N frame, which is specifically designed to bolt directly onto the burner housing of most major oil heating units.
Can the rotation of this motor be changed in the field?
Yes, the 3196 features reversible rotation. Technicians can swap the internal lead connections to match either clockwise or counter-clockwise requirements prior to installation.
Is this motor suitable for continuous duty?
While designed for the cycling nature of oil burners, its TENV construction and ball bearing system allow it to handle the thermal demands of standard heating seasons effectively.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
