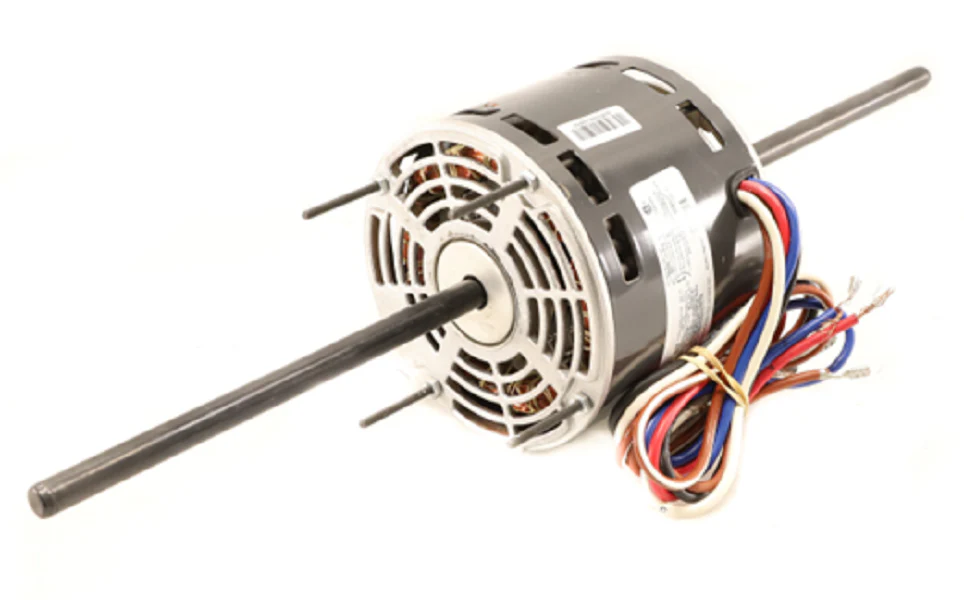

Nidec-US Motors 3135 Motor
The Nidec US Motors 3135 is a high-performance 1/3 HP blower motor designed for reliable service in light commercial and residential HVAC systems. Operating at 230V and a nominal 1075 RPM, this permanent split capacitor (PSC) motor delivers consistent airflow while maintaining an efficient 2.5 Amp draw. Built on a 48Y NEMA frame, it features an Open Drip Proof (ODP) enclosure, making it ideal for indoor air handling units where moisture protection is required but ventilation is critical for cooling the windings. This single-phase motor utilizes a dual 1/2" shaft configuration, providing versatile installation options for various blower wheel setups. The CCW lead end rotation and self-aligning sleeve bearings ensure quiet operation and reduced vibration, essential for maintaining system integrity over long run cycles. This unit is engineered for hub or stud mounting, allowing for straightforward integration into existing furnace or air handler assemblies without extensive modifications.
Key Benefits- Dual shaft design allows for maximum flexibility in HVAC blower motor replacement applications.
- Self-aligning sleeve bearings facilitate quiet operation and extend the service life of the motor assembly.
- Open Drip Proof (ODP) housing ensures optimal thermal management during high-demand cooling or heating cycles.
- Standard 48 frame blower motor dimensions simplify the swap-out process for contractors in the field.
- Low 2.5 Amp draw helps maintain energy efficiency across the 230V single phase power supply.
What capacitor is required for the US Motors 3135?
This 1075 RPM blower motor typically requires a 5 MFD / 370V run capacitor. Always check the nameplate on the specific unit to ensure the capacitance matches the winding requirements for proper torque and efficiency.
Can this motor be used in a 115V system?
No, the 3135 is a dedicated 230V HVAC motor. Connecting this unit to 115V will result in failure to start or significant underperformance, while incorrect voltage application can damage the internal windings.
Is the rotation reversible on this model?
The 3135 is specified for CCW rotation from the lead end. Before installation, verify the rotation of your existing blower wheel to ensure correct directional airflow and prevent static pressure issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $177.61
-65%$177.61
$62.16Nidec-US Motors 3135 Motor
The Nidec US Motors 3135 is a high-performance 1/3 HP blower motor designed for reliable service in light commercial and residential HVAC systems. Operating at 230V and a nominal 1075 RPM, this permanent split capacitor (PSC) motor delivers consistent airflow while maintaining an efficient 2.5 Amp draw. Built on a 48Y NEMA frame, it features an Open Drip Proof (ODP) enclosure, making it ideal for indoor air handling units where moisture protection is required but ventilation is critical for cooling the windings. This single-phase motor utilizes a dual 1/2" shaft configuration, providing versatile installation options for various blower wheel setups. The CCW lead end rotation and self-aligning sleeve bearings ensure quiet operation and reduced vibration, essential for maintaining system integrity over long run cycles. This unit is engineered for hub or stud mounting, allowing for straightforward integration into existing furnace or air handler assemblies without extensive modifications.
Key Benefits- Dual shaft design allows for maximum flexibility in HVAC blower motor replacement applications.
- Self-aligning sleeve bearings facilitate quiet operation and extend the service life of the motor assembly.
- Open Drip Proof (ODP) housing ensures optimal thermal management during high-demand cooling or heating cycles.
- Standard 48 frame blower motor dimensions simplify the swap-out process for contractors in the field.
- Low 2.5 Amp draw helps maintain energy efficiency across the 230V single phase power supply.
What capacitor is required for the US Motors 3135?
This 1075 RPM blower motor typically requires a 5 MFD / 370V run capacitor. Always check the nameplate on the specific unit to ensure the capacitance matches the winding requirements for proper torque and efficiency.
Can this motor be used in a 115V system?
No, the 3135 is a dedicated 230V HVAC motor. Connecting this unit to 115V will result in failure to start or significant underperformance, while incorrect voltage application can damage the internal windings.
Is the rotation reversible on this model?
The 3135 is specified for CCW rotation from the lead end. Before installation, verify the rotation of your existing blower wheel to ensure correct directional airflow and prevent static pressure issues.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
