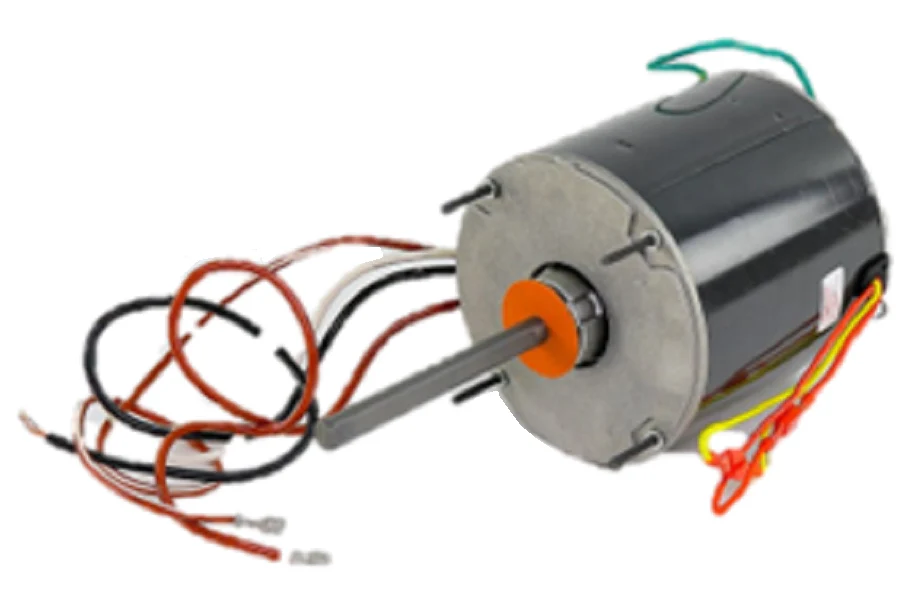

Nidec-US Motors 3097 Condenser Motor
This Nidec-US Motors 3097 Condenser Motor is a high-efficiency 3/4 HP condenser fan motor engineered for heavy-duty residential and commercial HVAC units. Operating at 1075 RPM on a 208-230V single-phase circuit, this PSC motor (Permanent Split Capacitor) draws 4.7 full-load amps and is built on a standard 48Y NEMA frame. Designed for reliability in high-heat environments, it features an Open Dripproof (ODP) Air Over enclosure and Class B insulation, allowing for continuous duty at a 60°C ambient temperature rating. As a veteran-preferred HVAC replacement motor, the 3097 offers dual mounting flexibility with hub or stud mount configurations and a reversible rotation feature to match specific fan pitch requirements. The 5.6-inch diameter motor utilizes a self-aligning bearing (SAB) system to ensure smooth operation and long-term axial thrust management in either shaft-up or horizontal orientations. This 1075 RPM motor is an ideal economizer-rated solution for contractors seeking a drop-in replacement that meets rigorous OEM specifications.
Key Benefits
- Enhanced Durability: Equipped with Class B insulation and an automatic reset thermal overload protector to prevent winding failure during extreme cycles.
- Universal Compatibility: The 48Y frame and reversible rotation allow this unit to replace a wide range of OEM condenser fan motors.
- Optimized Cooling: The Open Air Over (OAO) design leverages the system's airflow to maintain low internal operating temperatures.
- Easy Installation: Features a 1/2" diameter x 5" long shaft with extended mounting studs for quick retrofitting in the field.
Common Questions
What capacitor is required for this motor?
This motor typically requires a 10 MFD / 370 VAC run capacitor, though some field applications may utilize a 7.5 MFD depending on specific technical duty requirements.
Can I mount this motor in any position?
Yes, the internal bearing system and drainage design support vertical shaft-up or horizontal mounting positions.
Is this a direct replacement for 3/4 HP 1075 RPM 48-frame motors?
The Nidec 3097 is a versatile 48Y frame motor; however, verify the shaft dimensions (1/2" x 5") and amperage draw (4.7A) against your existing unit to ensure electrical and mechanical alignment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
3097 is the cross of Fasco D929
