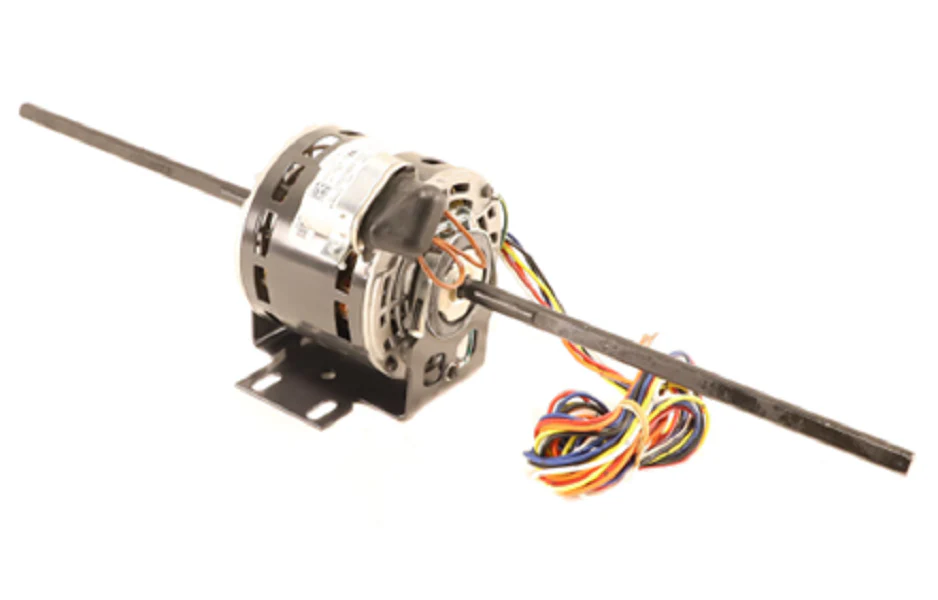

Nidec-US Motors 2827P Motor
The Nidec-US Motors 2827P is a high-performance 1/10 HP direct drive blower motor engineered for precision in fan coil units and packaged terminal air conditioners. Operating at 115V and 1050 RPM, this PSC blower motor features a specialized 42Y frame design and a 5.0-inch diameter for clean integration into tight HVAC housings. Its 1/2-inch dual shaft configuration allows for simultaneous operation of multiple blowers, making it an essential replacement for commercial and high-density residential air handlers.
Built with technical durability in mind, the US Motors 2827P utilizes self-aligning sleeve bearings with an all-angle thrust system for quiet operation in any orientation. The open air over (OAO) enclosure ensures maximum heat dissipation during continuous duty cycles, while the automatic reset thermal overload protector prevents winding failure during restricted airflow events. This 5-speed motor offers versatile performance profiles, allowing technicians to fine-tune CFM delivery for specific system requirements via the 24-inch line leads.
- Dual shaft 1/10 HP motor for simultaneous fan coil or blower wheel operation.
- 42Y NEMA frame with a compact 5-inch diameter for streamlined installation in narrow HVAC cabinets.
- 115V single phase PSC design provides higher efficiency and reliability compared to standard shaded pole alternatives.
- Open Air Over (OAO) enclosure specifically rated for continuous duty in moving air streams.
- Cradle mount base reduces vibration and mechanical noise across all five operating speeds.
Common Technical Questions
Can this motor replace a single-shaft 42Y frame motor?
Yes, however, ensure you have adequate clearance for the unused shaft or verify that the dual-shaft extension does not interfere with the housing or other components.
What is the standard rotation for the 2827P?
This motor is configured for Clockwise (CW) rotation when viewed from the lead end. Always verify your existing blower wheel direction before installation.
Is the capacitor included with this motor?
This is a Permanent Split Capacitor (PSC) motor; specific aftermarket kits may require a separate run capacitor if the existing one is not rated for 1/10 HP requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
